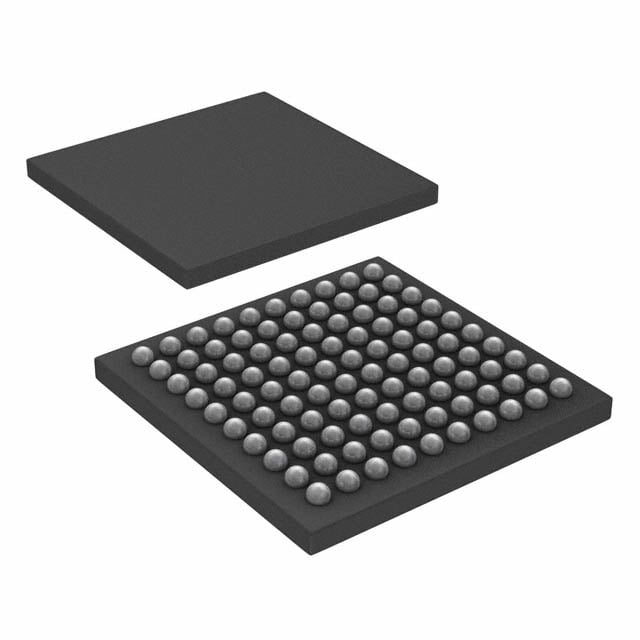

STM32L4A6VGY6PTR ST Microcontrollers | 100-WLCSP(4.62X4.14) | 120MHz ARM Cortex-M4, 1MB Flash

Product Overview

The STM32L4A6VGY6PTR is a high-performance ultra-low-power microcontroller from STMicroelectronics, part of the STM32L4 series. It features an ARM Cortex-M4 core with FPU, operating at up to 120 MHz, and integrates up to 1 MB of Flash memory and 320 KB of SRAM. The device is housed in a compact 100-WLCSP package (4.62 x 4.14 mm), making it ideal for space-constrained applications. It offers a rich set of peripherals including USB OTG, CAN FD, multiple SPI/I2C/UART interfaces, and advanced analog features. With its ultra-low-power consumption and high performance, it is suitable for a wide range of industrial, consumer, and IoT applications.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 8 µA in Stop mode with RTC
• ARM Cortex-M4 core with DSP instructions and FPU
• Rich connectivity: USB OTG, CAN FD, multiple serial interfaces
• Advanced analog: 2x 12-bit ADC, 2x 12-bit DAC, comparators
• Up to 1 MB Flash with ECC and 320 KB SRAM
• Compact 100-WLCSP package for space-constrained designs
• Hardware cryptographic acceleration (AES, DES, HASH)
• True random number generator (TRNG)

Target Applications

The STM32L4A6VGY6PTR is ideal for a variety of applications including:

• Industrial sensors and actuators
• Smart home devices (e.g., smart thermostats, lighting controllers)
• Portable medical devices (e.g., glucose meters, pulse oximeters)
• IoT edge nodes and gateways
• 5G base station control modules
• Automotive dashboard controllers
• Consumer electronics (e.g., wearables, remote controls)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32L4A6VGY6PTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32L4A6VGY6PTR 是意法半導體（STMicroelectronics）推出的一款高性能超低功耗微控制器，屬於 STM32L4 系列。它採用 ARM Cortex-M4 內核（含 FPU），最高工作頻率 120 MHz，集成高達 1 MB 快閃記憶體和 320 KB SRAM。該器件採用緊湊的 100-WLCSP 封裝（4.62 x 4.14 mm），非常適合空間受限的應用。它提供豐富的外設，包括 USB OTG、CAN FD、多個 SPI/I2C/UART 接口以及先進的模擬功能。憑藉其超低功耗和高性能，適用於工業、消費類和物聯網等多種應用。

詳細技術參數

核心特性

• 超低功耗：停止模式下僅 8 µA（含 RTC）
• ARM Cortex-M4 內核，支持 DSP 指令和 FPU
• 豐富的連接性：USB OTG、CAN FD、多種串行接口
• 先進的模擬功能：2x 12-bit ADC、2x 12-bit DAC、比較器
• 高達 1 MB 快閃記憶體（含 ECC）和 320 KB SRAM
• 緊湊的 100-WLCSP 封裝，適合空間受限設計
• 硬件加密加速（AES、DES、HASH）
• 真隨機數發生器（TRNG）

典型應用場景

STM32L4A6VGY6PTR 適用於多種應用，包括：

• 工業傳感器和執行器
• 智能家居設備（如智能恆溫器、照明控制器）
• 便攜式醫療設備（如血糖儀、脈搏血氧儀）
• 物聯網邊緣節點和網關
• 5G 基站控制模塊
• 汽車儀表盤控制器
• 消費電子產品（如可穿戴設備、遙控器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32L4A6VGY6PTR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
