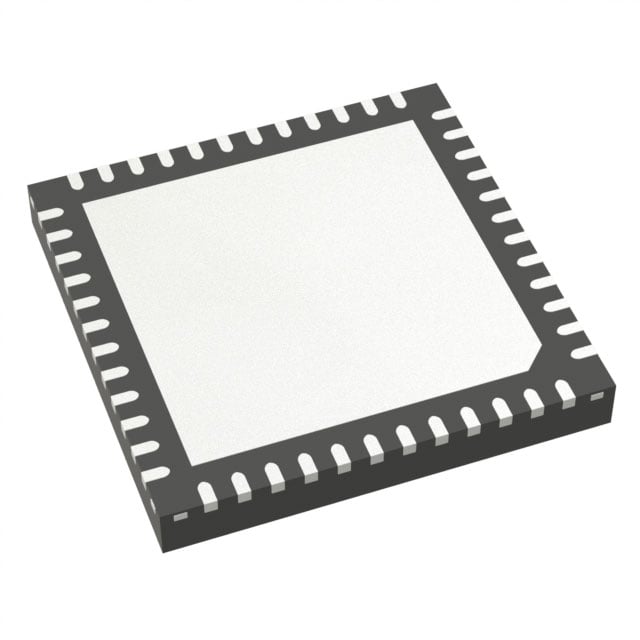

STM32U535CBU6 ST MCU | 48-UFQFPN（7X7） | 160MHz Arm Cortex-M33, 512KB Flash

Product Overview

The STM32U535CBU6 is a high-performance ultra-low-power microcontroller from STMicroelectronics, part of the STM32U5 series. It features an Arm Cortex-M33 core with TrustZone and FPU, operating at up to 160 MHz. This device integrates up to 512 KB of Flash memory and 272 KB of SRAM, along with advanced peripherals for secure and efficient embedded applications. The 48-UFQFPN (7x7 mm) package offers a compact footprint suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low-power with multiple dynamic voltage scaling modes
• Arm Cortex-M33 with TrustZone for hardware isolation
• Rich set of analog peripherals: 2x ADCs, 1x DAC, comparators, op-amps
• Advanced security: AES-256, HASH, RNG, tamper detection
• Up to 36 GPIOs with flexible mapping
• USB OTG FS with crystal-less operation
• FDCAN interface for automotive and industrial communication
• SDMMC interface for external memory
• Low-power UART, I2C, SPI for sensor integration
• Up to 160 MHz performance with 512 KB Flash

Target Applications

• Industrial control: PLCs, motor drives, sensors
• Smart home: IoT gateways, smart locks, thermostats
• Medical devices: portable monitors, infusion pumps
• Automotive: body control modules, dashboard controllers
• Consumer electronics: wearables, smartwatches, remote controls
• 5G base station: remote monitoring, power management
• Security systems: access control panels, surveillance cameras

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32U535CBU6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32U535CBU6 是意法半導體高性能超低功耗微控制器，屬於 STM32U5 系列。它採用帶有 TrustZone 和 FPU 的 Arm Cortex-M33 內核，工作頻率高達 160 MHz。該器件集成高達 512 KB 的 Flash 存儲器和 272 KB 的 SRAM，並配備先進的外設，適用於安全高效的嵌入式應用。48-UFQFPN（7x7 mm）封裝提供緊湊的尺寸，適合空間受限的設計。

詳細技術參數

核心特性

• 超低功耗，支持多種動態電壓調節模式
• Arm Cortex-M33 帶 TrustZone 硬件隔離
• 豐富的模擬外設：2 個 ADC、1 個 DAC、比較器、運算放大器
• 高級安全：AES-256、HASH、RNG、防篡改檢測
• 最多 36 個 GPIO，靈活映射
• USB OTG FS，支持無晶振操作
• FDCAN 接口，用於汽車和工業通信
• SDMMC 接口，用於外部存儲器
• 低功耗 UART、I2C、SPI，用於傳感器集成
• 高達 160 MHz 性能，512 KB Flash

典型應用場景

• 工業控制：PLC、電機驅動、傳感器
• 智能家居：物聯網網關、智能鎖、恆溫器
• 醫療設備：便攜監護儀、輸液泵
• 汽車電子：車身控制模塊、儀表盤控制器
• 消費電子：可穿戴設備、智能手錶、遙控器
• 5G 基站：遠程監控、電源管理
• 安防系統：門禁控制面板、監控攝像頭

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32U535CBU6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
