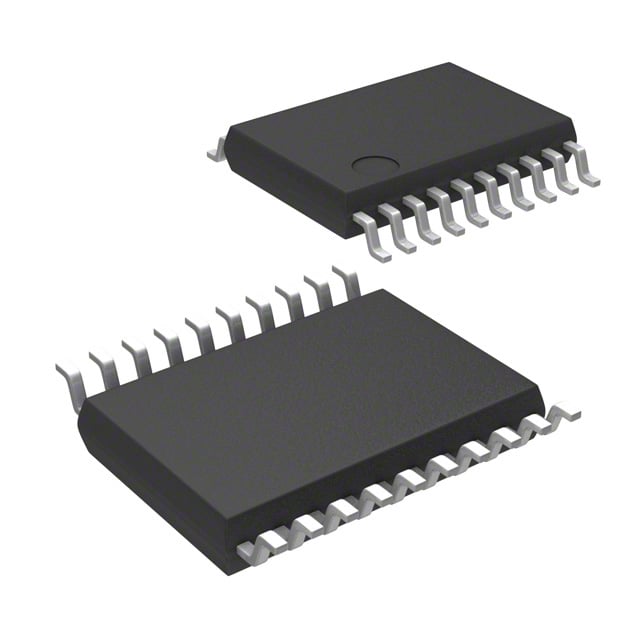

STM8AF6223PDAU ST Microcontroller | 20-TSSOP | 8-bit, 8KB Flash, LIN

Product Overview

The STM8AF6223PDAU is an 8-bit microcontroller from STMicroelectronics' STM8A series, designed for automotive applications. It features an advanced STM8 core with a 16 MHz CPU clock, 8 KB of Flash memory, 1 KB of RAM, and 640 bytes of EEPROM. Housed in a compact 20-pin TSSOP package, it offers a rich set of peripherals including LIN (Local Interconnect Network) interface, 10-bit ADC, timers, and I2C/SPI/UART communication interfaces. This device is AEC-Q100 qualified, ensuring reliability for harsh automotive environments.

Detailed Technical Specifications

Key Features

• High-performance STM8A core with 16 MIPS at 16 MHz
• Embedded LIN controller for automotive networking
• Enhanced ESD protection and EMI robustness
• Low power modes: Wait, Active-halt, Halt
• Up to 16 GPIOs with programmable interrupts
• Single-wire debug interface (SWIM)
• Clock sources: Internal 16 MHz RC, external crystal, or resonator

Target Applications

The STM8AF6223PDAU is ideal for automotive body electronics and industrial control systems. Specific applications include:

• Automotive LIN slave nodes (e.g., door modules, seat controls, steering wheel switches)
• 5G base station power management and monitoring
• Dashboard instrument cluster control
• Sensor interfaces for temperature, pressure, and position
• Small motor control (e.g., window lift, mirror adjustment)
• Industrial automation sensors and actuators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8AF6223PDAU. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
