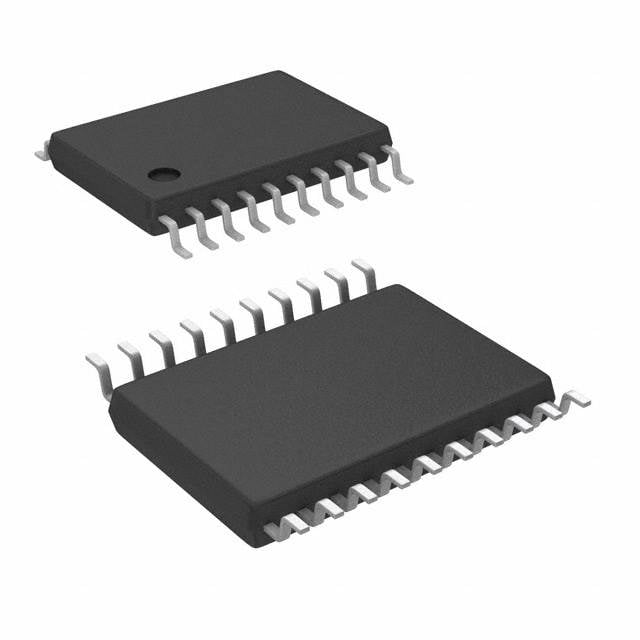

STM8L101F2P6TR ST Microcontroller | 20-TSSOP | 8-bit, 4KB Flash, 1KB RAM

Product Overview

The STM8L101F2P6TR is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L101xx family. It features an advanced STM8 core with a 16 MHz CPU clock, 4 KB of Flash program memory, and 1 KB of RAM. Housed in a compact 20-pin TSSOP package, this device is designed for applications requiring low power consumption and high performance. It operates over a supply voltage range of 1.8V to 3.6V and includes a rich set of peripherals such as timers, UART, SPI, I2C, and an 8-bit ADC. The STM8L101F2P6TR is ideal for battery-powered devices, sensor interfaces, and industrial control systems.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.35 µA in Halt mode, 1 µA in Active-halt mode
• Fast wake-up from Halt mode (4.7 µs)
• Embedded single-wire debug module (SWIM)
• Clock sources: Internal 16 MHz RC, 38 kHz RC, external crystal
• Reset circuitry: Power-on reset (POR), power-down reset (PDR), brown-out reset (BOR)
• Up to 18 I/Os, all mappable on interrupt vectors
• 8-bit ADC with 5 channels
• Two 16-bit timers with capture/compare and PWM
• One 8-bit timer with prescaler
• UART, SPI, I2C communication interfaces
• Unique ID for each device

Target Applications

The STM8L101F2P6TR is suitable for a wide range of low-power and cost-sensitive applications, including:

• Battery-powered devices: portable medical monitors, smart watches, fitness trackers
• Sensor interfaces: temperature sensors, pressure sensors, gas detectors
• Industrial control: motor control, lighting control, power tools
• Consumer electronics: remote controls, toys, smart home devices
• Automotive: body control modules, seat control, window lift
• Communication modules: 5G base station monitoring, IoT edge nodes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L101F2P6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
