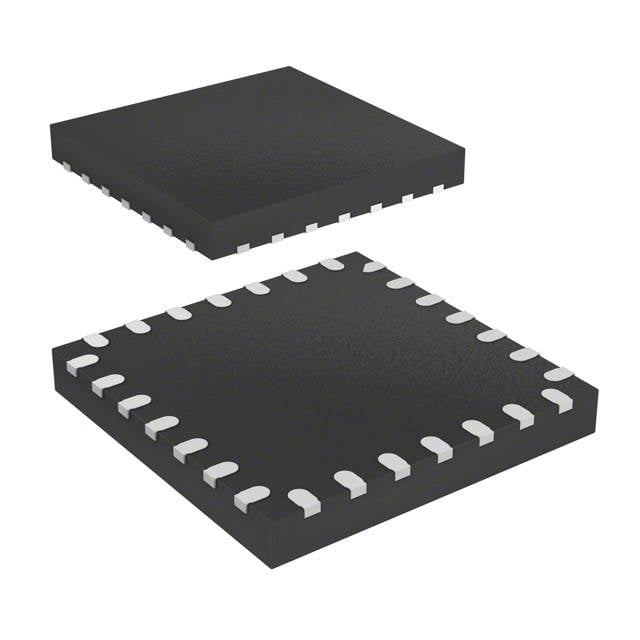

STM8L101G3U6 ST Microcontrollers | 28-UFQFPN（4X4） | 8-bit, 8KB Flash, 1.5KB RAM

Product Overview

The STM8L101G3U6 is an ultra-low-power 8-bit microcontroller from STMicroelectronics' STM8L series, designed for energy-sensitive applications. It features an advanced STM8 core operating at up to 16 MHz, with 8 KB of Flash program memory and 1.5 KB of RAM. Housed in a compact 28-pin UFQFPN 4x4 mm package, it offers a rich set of peripherals including multiple timers, USART, SPI, I2C, and up to 18 I/Os. Its low-power modes (Halt, Active-halt, Wait) and dynamic voltage scaling make it ideal for battery-powered and portable devices.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.35 µA in Halt mode, 1 µA in Active-halt mode
• Fast wake-up from Halt mode (4.7 µs)
• Embedded data EEPROM (up to 1 KB)
• Clock sources: Internal 16 MHz RC, 38 kHz low-power RC, external crystal
• Reset circuitry: Power-on reset, brown-out reset
• Up to 18 I/Os with programmable pull-up and interrupt capability
• Dual Watchdog timers (independent and window)
• Single-wire debug interface (SWIM)

Target Applications

The STM8L101G3U6 is suitable for a wide range of low-power applications, including:

• Portable medical devices (e.g., blood glucose meters, thermometers)
• Smart sensors and IoT endpoints (e.g., temperature/humidity sensors, motion detectors)
• Battery-powered consumer electronics (e.g., remote controls, smart watches)
• Industrial control (e.g., 5G base station monitoring, smart meters)
• Automotive (e.g., dashboard controls, key fobs)
• Home automation (e.g., smart locks, lighting controllers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L101G3U6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8L101G3U6 是意法半導體 STM8L 系列的超低功耗 8 位微控制器，專為能源敏感型應用設計。它採用先進的 STM8 內核，最高工作頻率 16 MHz，配備 8 KB Flash 程序存儲器和 1.5 KB RAM。採用緊湊的 28 引腳 UFQFPN 4x4 mm 封裝，提供豐富的外設，包括多個定時器、USART、SPI、I2C 和多達 18 個 I/O。其低功耗模式（停機、活躍停機、等待）和動態電壓調節使其非常適合電池供電和便攜式設備。

詳細技術參數

核心特性

• 超低功耗：停機模式 0.35 µA，活躍停機模式 1 µA
• 從停機模式快速喚醒（4.7 µs）
• 嵌入式數據 EEPROM（最多 1 KB）
• 時鐘源：內部 16 MHz RC、38 kHz 低功耗 RC、外部晶振
• 復位電路：上電復位、欠壓復位
• 最多 18 個 I/O，可編程上拉和中斷功能
• 雙看門狗定時器（獨立和窗口）
• 單線調試接口 (SWIM)

典型應用場景

STM8L101G3U6 適用於多種低功耗應用，包括：

• 便攜式醫療設備（如血糖儀、體溫計）
• 智能傳感器和 IoT 終端（如溫濕度傳感器、運動檢測器）
• 電池供電的消費電子產品（如遙控器、智能手錶）
• 工業控制（如 5G 基站監控、智能電錶）
• 汽車電子（如儀表板控制、鑰匙扣）
• 家庭自動化（如智能鎖、照明控制器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8L101G3U6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
