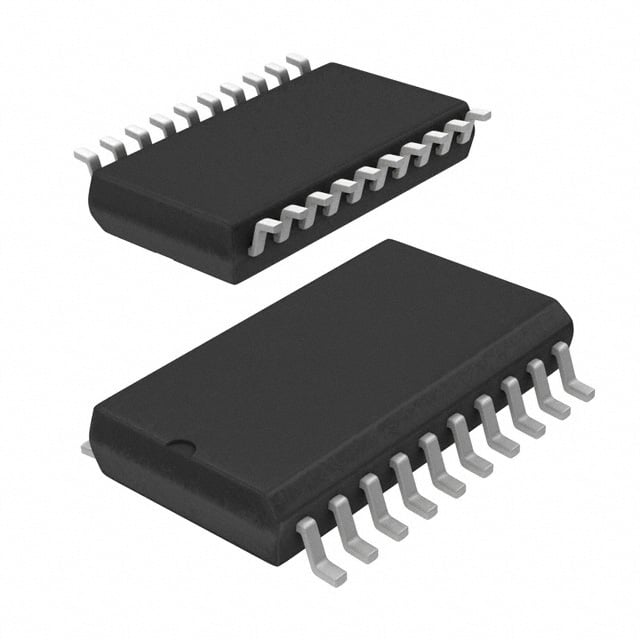

STM8S103F2M6TR ST Microcontroller | 20-SO | 8-bit, 16 MHz, 4 KB Flash

Product Overview

The STM8S103F2M6TR is an 8-bit microcontroller from STMicroelectronics, part of the STM8S series. It features a high-performance STM8 core operating at up to 16 MHz, with 4 KB of Flash program memory, 1 KB of RAM, and 128 bytes of EEPROM. The device is housed in a 20-pin SO package, making it suitable for compact and cost-sensitive applications. It offers a rich set of peripherals including UART, SPI, I2C, timers, and an ADC, providing flexibility for various embedded control tasks.

Detailed Technical Specifications

Key Features

• High-performance STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Clock sources: internal 16 MHz RC, external crystal, or external clock
• Reset circuit with power-on reset (POR) and brown-out reset (BOR)
• Low-power modes: Wait, Active-halt, and Halt
• Up to 16 I/Os with programmable pull-ups and interrupt capability
• 10-bit ADC with up to 5 channels
• Two timers: 16-bit general-purpose timer with 3 CAPCOM channels, 8-bit basic timer with prescaler
• Communication interfaces: UART with synchronous mode, SPI, I2C
• 128 bytes of data EEPROM with read-while-write capability
• Operating voltage range: 2.95 V to 5.5 V

Target Applications

The STM8S103F2M6TR is ideal for a wide range of applications including:

• Industrial control: motor control, sensor interfaces, PLCs
• Consumer electronics: remote controls, toys, small appliances
• Automotive: body control modules, lighting, dashboard controls
• Communication: 5G base station monitoring, IoT edge nodes
• Medical devices: portable diagnostic tools, patient monitors
• Smart home: thermostats, smart locks, lighting controllers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S103F2M6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
