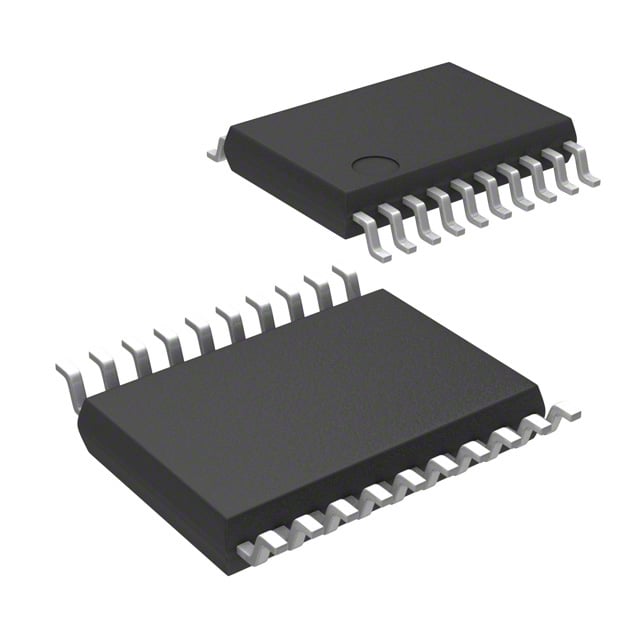

STM8S103F2P6TR ST Microcontroller | 20-TSSOP | 8-bit, 8KB Flash, 1KB RAM

Product Overview

The STM8S103F2P6TR is an 8-bit microcontroller from STMicroelectronics, part of the STM8S series. It features an advanced STM8 core with a 3-stage pipeline, operating at up to 16 MHz. The device offers 8 KB of Flash program memory, 1 KB of RAM, and 640 bytes of EEPROM. It is housed in a compact 20-pin TSSOP package, making it suitable for space-constrained applications. The microcontroller includes a rich set of peripherals such as UART, SPI, I2C, timers, and an ADC, providing flexibility for various embedded control tasks.

Detailed Technical Specifications

Key Features

• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Low power modes: Halt, Active-halt, Wait
• Clock sources: internal 16 MHz RC, external crystal, or resonator
• Reset circuitry: power-on reset, brown-out reset
• Up to 16 I/Os with programmable pull-ups
• 10-bit ADC with up to 5 channels
• Two timers: 16-bit general-purpose timer with 3 CAPCOM channels, 8-bit basic timer
• Serial interfaces: UART with LIN support, SPI, I2C
• Up to 32 interrupt vectors
• Embedded EEPROM with up to 100k write/erase cycles

Target Applications

The STM8S103F2P6TR is ideal for cost-sensitive and performance-oriented applications, including:

• Industrial control: motor control, sensor interfaces, PLC modules
• Consumer electronics: remote controls, small appliances, toys
• Automotive: body control modules, lighting, window lifters
• Communication: 5G base station monitoring, IoT edge nodes
• Medical devices: portable diagnostic tools, patient monitoring
• Smart home: thermostats, smart locks, lighting controllers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S103F2P6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
