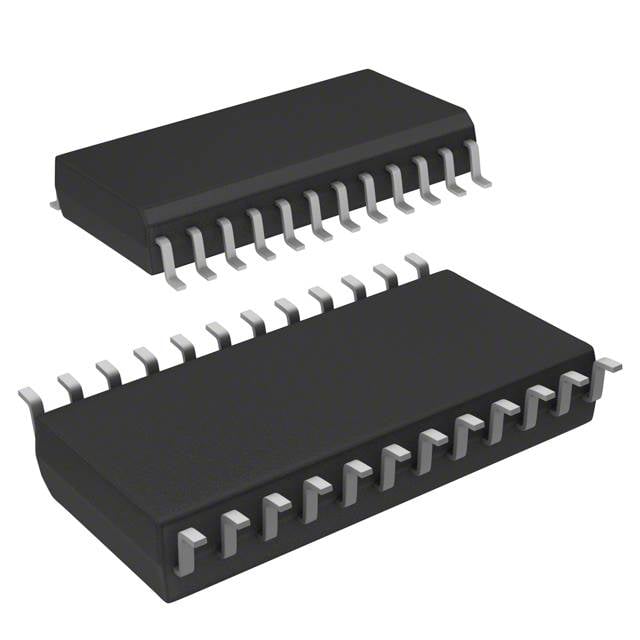

STP16DPPS05MTR ST LED Driver | 24-SOP | 16-Channel, 5V, 30mA

Product Overview

The STP16DPPS05MTR is a 16-channel constant current LED sink driver designed by STMicroelectronics. It integrates a 16-bit shift register and data latches, allowing serial data input and parallel output control. Each channel can sink up to 30mA with a supply voltage range of 3V to 5.5V. The device features a thermal shutdown protection and error detection for open and short LED conditions. Housed in a compact 24-SOP package, it is ideal for space-constrained applications requiring high reliability and performance.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Adjustable output current via external resistor
• 3-wire serial interface (SDI, CLK, LE)
• Output current accuracy: ±1% (typical)
• Built-in thermal shutdown protection
• Open and short LED detection
• Low power consumption
• Wide operating temperature range

Target Applications

• LED signage and displays (e.g., outdoor billboards, stadium scoreboards)
• Automotive lighting (e.g., dashboard backlighting, interior ambient lighting)
• Industrial control panels (e.g., PLC indicator lights, machine status displays)
• 5G base station status indicators
• Consumer electronics (e.g., smart home devices, gaming peripherals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STP16DPPS05MTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
