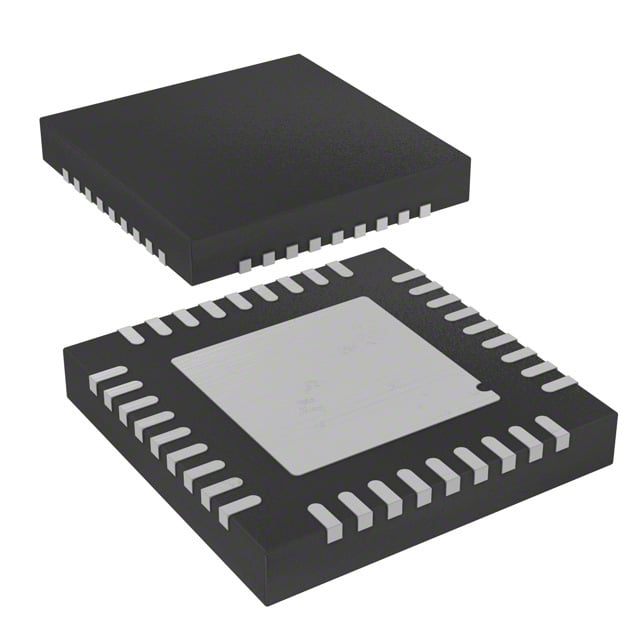

STUW81300T ST RF Synthesizer | 36-VFQFPN (6x6) | 0.25-6 GHz, 3.3V

Product Overview

The STUW81300T is a high-performance, wideband RF synthesizer from STMicroelectronics, designed for demanding wireless infrastructure and test equipment applications. It integrates a fractional-N PLL with a voltage-controlled oscillator (VCO) covering 0.25 to 6 GHz, offering low phase noise and fast settling time. Housed in a compact 36-VFQFPN (6x6 mm) package, it operates from a 3.3V supply and consumes only 250 mW typical. The device supports both integer and fractional-N modes, with a 24-bit modulus for fine frequency resolution. Its advanced architecture includes a programmable charge pump, integrated loop filter, and output dividers for flexible frequency planning.

Detailed Technical Specifications

Key Features

• Wideband frequency coverage from 250 MHz to 6 GHz
• Low phase noise: -120 dBc/Hz at 100 kHz offset (1 GHz)
• Fractional-N and integer-N modes with 24-bit modulus
• Integrated VCO with automatic calibration
• Programmable charge pump current (0.5 to 5 mA)
• Fast settling time: < 50 μs
• Low power consumption: 250 mW typical
• Small 6x6 mm QFN package
• 3-wire SPI interface for control

Target Applications

• 5G base station local oscillators (e.g., for massive MIMO transceivers)
• Wireless infrastructure (e.g., small cells, repeaters)
• Test and measurement equipment (e.g., spectrum analyzers, signal generators)
• Radar systems (e.g., automotive radar, surveillance radar)
• Satellite communications (e.g., VSAT terminals)
• Software-defined radio (SDR) platforms

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STUW81300T. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
