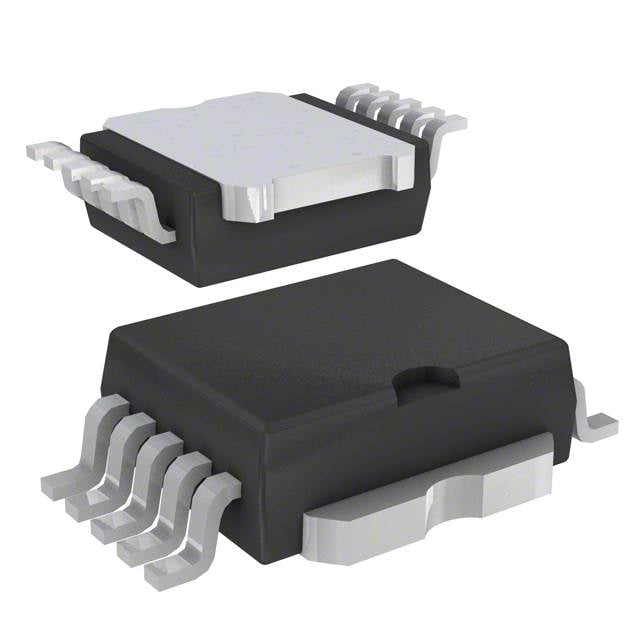

VN340SP-33-E ST Power Switch | 10-PowerSO | 36V, 4-Channel

Product Overview

The VN340SP-33-E is a monolithic quad high-side smart power switch manufactured by STMicroelectronics, featuring four independent 0.5Ω (typical) N-channel power MOSFETs with embedded protection and diagnostic functions. Housed in a compact 10-PowerSO package, it is designed for driving resistive, inductive, and capacitive loads in harsh automotive and industrial environments. The device operates from a 36V maximum supply voltage and integrates advanced protection features including overcurrent, overtemperature, and short-circuit protection, as well as a dedicated diagnostic output for fault reporting.

Detailed Technical Specifications

Key Features

• Quad high-side switch with independent control
• Low on-resistance (0.5Ω) for reduced power dissipation
• Integrated overcurrent and overtemperature protection
• Short-circuit protection with auto-restart
• Load dump protection up to 40V
• Diagnostic output for fault indication
• Very low standby current (<5µA)
• Compatible with 3.3V and 5V logic levels
• ESD protection (HBM: 2kV, CDM: 500V)

Target Applications

The VN340SP-33-E is ideal for driving a variety of loads in automotive and industrial systems. Specific examples include:

• Automotive: Dashboard lighting, HVAC actuators, seat control modules, and power distribution boxes
• Industrial: PLC output modules, motor control for small pumps and fans, and solenoid drivers
• 5G Base Stations: Power management for remote radio units (RRUs) and antenna tilting systems
• Home Appliances: Smart lighting, washing machine valve control, and refrigerator defrost heaters
