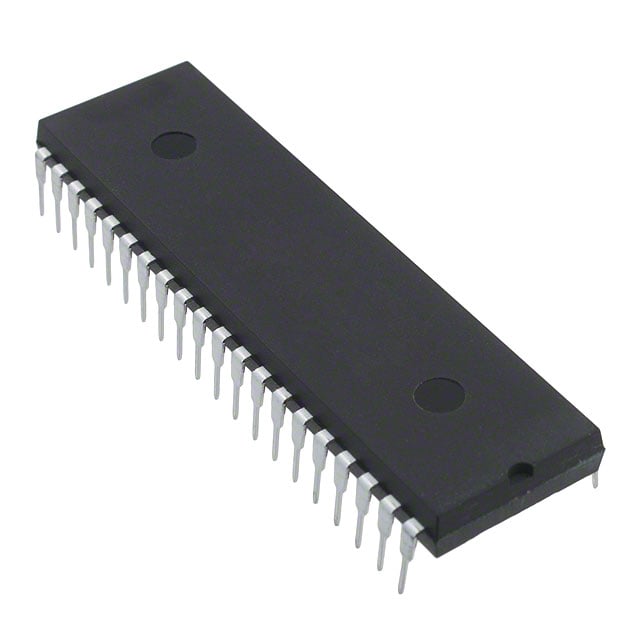

ADC0817CCN TI 8-Bit ADC | 40-DIP | 8-Channel, 10ksps

Product Overview

The ADC0817CCN is a CMOS 8-bit successive approximation analog-to-digital converter from Texas Instruments. It features an 8-channel multiplexer, microprocessor-compatible control logic, and a 40-pin DIP package. The converter uses a ratiometric conversion method with a 5V supply and offers a maximum conversion time of 100 µs, corresponding to a sampling rate of 10 ksps. The device is designed for easy interface with microprocessors and is ideal for applications requiring multiple analog input channels.

Detailed Technical Specifications

Key Features

• 8-bit resolution with ±1 LSB accuracy
• 8-channel analog multiplexer with address logic
• Ratiometric conversion without external reference
• Microprocessor-compatible control inputs (CS, RD, WR, INTR)
• Low power consumption: 15 mW typical
• Wide operating temperature range
• 40-pin DIP package for easy prototyping

Target Applications

• Industrial process control systems (e.g., PLC analog input modules)
• Data acquisition systems for sensor monitoring (e.g., temperature, pressure)
• Automotive diagnostics (e.g., battery voltage monitoring)
• 5G base station power management (e.g., monitoring multiple supply rails)
• Medical instrumentation (e.g., patient monitoring devices)
• Consumer electronics (e.g., smart home sensor interfaces)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADC0817CCN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
