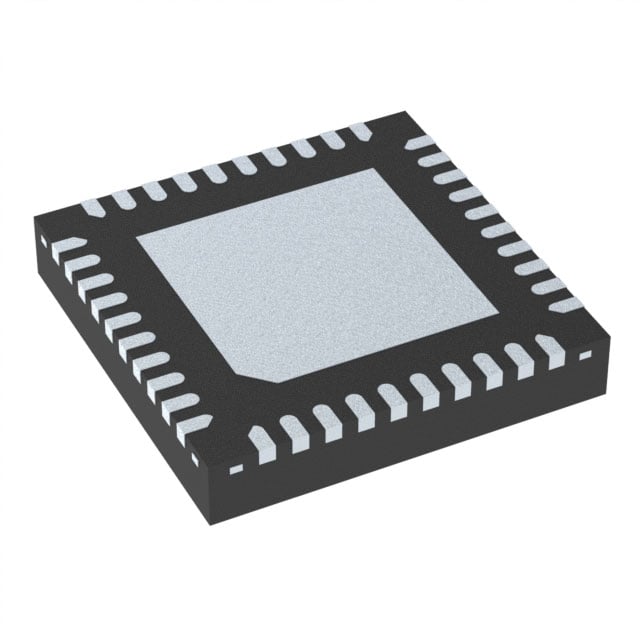

ADC3582IRSBT TI ADC | 40-WQFN (5X5) | 18-Bit, 10MSPS, 2-Ch

Product Overview

The ADC3582IRSBT is a high-performance, 18-bit, 10 MSPS, dual-channel successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It operates from a single 1.8V supply and features a low-power architecture, making it ideal for multi-channel data acquisition systems. The device includes an internal reference buffer and supports a wide input range, simplifying system design. Packaged in a compact 40-WQFN (5x5 mm), it offers excellent linearity and noise performance for precision applications.

Detailed Technical Specifications

Key Features

• 18-bit resolution with 10 MSPS sampling rate
• Dual-channel simultaneous sampling
• Low power: 15 mW per channel
• Excellent dynamic performance: 92 dB SNR, 110 dB SFDR
• Internal reference buffer
• Serial LVDS interface for high-speed data transfer
• Small 5x5 mm WQFN package
• Wide input range with flexible reference

Target Applications

• 5G base station transceivers (e.g., MIMO receivers)
• Automotive radar systems (e.g., 77 GHz radar modules)
• Medical imaging (e.g., ultrasound beamforming)
• Industrial data acquisition (e.g., vibration monitoring)
• Test and measurement equipment (e.g., oscilloscopes)
• Software-defined radio (SDR) platforms

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADC3582IRSBT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ADC3582IRSBT 是德州儀器推出的一款高性能、18位、10 MSPS 雙通道逐次逼近寄存器（SAR）模數轉換器（ADC）。它採用單一1.8V電源供電，具有低功耗架構，非常適合多通道數據採集系統。該器件包含內部基準緩衝器，支持寬輸入範圍，簡化了系統設計。採用緊湊的40-WQFN（5x5 mm）封裝，為精密應用提供出色的線性度和噪聲性能。

詳細技術參數

核心特性

• 18位分辨率，10 MSPS採樣率
• 雙通道同步採樣
• 低功耗：15 mW/通道
• 出色的動態性能：92 dB SNR，110 dB SFDR
• 內部基準緩衝器
• 串行LVDS接口，支持高速數據傳輸
• 小型5x5 mm WQFN封裝
• 寬輸入範圍，靈活的基準配置

典型應用場景

• 5G基站收發器（例如MIMO接收機）
• 汽車雷達系統（例如77 GHz雷達模塊）
• 醫療成像（例如超聲波波束成形）
• 工業數據採集（例如振動監測）
• 測試與測量設備（例如示波器）
• 軟件定義無線電（SDR）平台

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ADC3582IRSBT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
