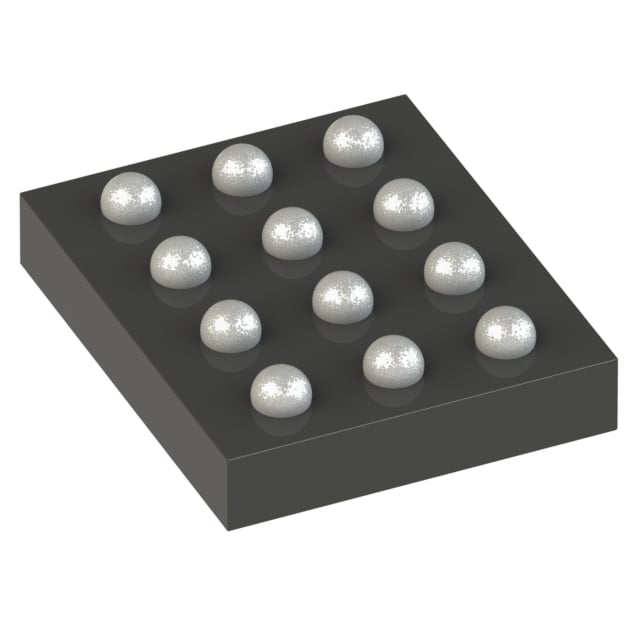

ADS1015LIYCJR TI Analog-to-Digital Converter | 12-DSBGA (1.46X1.11) | 12-Bit, I2C, 3.3kSPS

Product Overview

The ADS1015LIYCJR is a precision, low-power, 12-bit analog-to-digital converter (ADC) from Texas Instruments. It features an I2C-compatible interface and operates from a single power supply ranging from 2.0V to 5.5V. The device includes an internal voltage reference, a programmable gain amplifier (PGA), and an oscillator, eliminating the need for external components. With a data rate of up to 3.3k samples per second (SPS), it is ideal for space-constrained applications requiring high-resolution conversion. The package is a 12-ball DSBGA (1.46mm x 1.11mm), making it suitable for compact designs.

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• Programmable data rate: 128 SPS to 3.3 kSPS
• Internal voltage reference (1.2V)
• Programmable gain amplifier (PGA) with gains of 1, 2, 4, 8, 16
• I2C interface with four address options
• Low power consumption: 150 µA at 3.3V
• Shutdown mode: 0.5 µA
• Small footprint: 1.46mm x 1.11mm DSBGA package

Target Applications

The ADS1015LIYCJR is designed for a wide range of applications including:

• Portable instrumentation (e.g., digital multimeters, data loggers)
• Battery monitoring in 5G base stations
• Sensor interfaces in automotive dashboards (e.g., temperature, pressure sensors)
• Industrial process control (e.g., 4-20 mA loop receivers)
• Medical devices (e.g., glucose meters, pulse oximeters)
• Internet of Things (IoT) sensor nodes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1015LIYCJR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ADS1015LIYCJR 是德州儀器（TI）推出的一款精密、低功耗、12位模數轉換器（ADC）。它採用 I2C 兼容接口，可在 2.0V 至 5.5V 的單電源下工作。器件內部集成電壓基準、可編程增益放大器（PGA）和振盪器，無需外部元件。數據速率最高可達 3.3k 樣本/秒（SPS），非常適合需要高分辨率轉換的空間受限應用。封裝為 12 球 DSBGA（1.46mm x 1.11mm），適用於緊湊型設計。

詳細技術參數

核心特性

• 12 位分辨率，無漏碼
• 可編程數據速率：128 SPS 至 3.3 kSPS
• 內部電壓基準（1.2V）
• 可編程增益放大器（PGA），增益為 1、2、4、8、16
• I2C 接口，四個地址選項
• 低功耗：3.3V 時 150 µA
• 關斷模式：0.5 µA
• 小尺寸：1.46mm x 1.11mm DSBGA 封裝

典型應用場景

ADS1015LIYCJR 適用於多種應用，包括：

• 便攜式儀器（例如數字萬用表、數據記錄儀）
• 5G 基站中的電池監控
• 汽車儀表板中的傳感器接口（例如溫度、壓力傳感器）
• 工業過程控制（例如 4-20 mA 環路接收器）
• 醫療設備（例如血糖儀、脈搏血氧儀）
• 物聯網（IoT）傳感器節點

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ADS1015LIYCJR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
