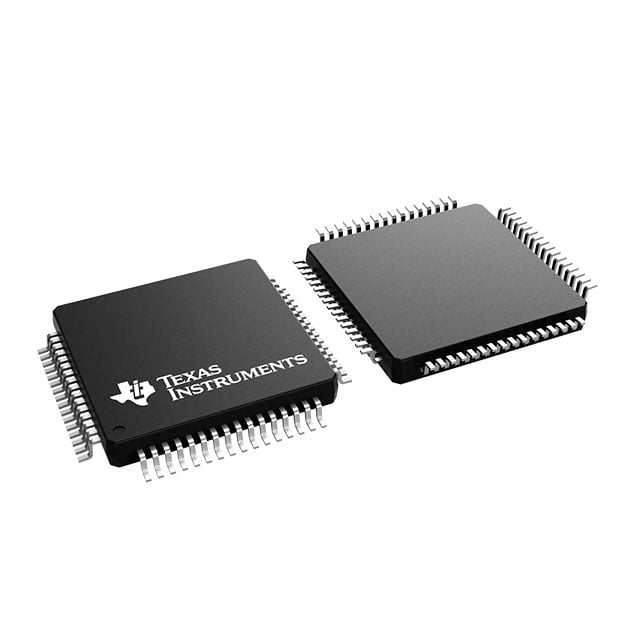

ADS1196CPAG TI Analog Front End | 64-TQFP (10x10) | 8-Ch, 16-Bit, Low Power

Product Overview

The ADS1196CPAG is a low-power, 8-channel, 16-bit delta-sigma analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and oscillator. Designed for biopotential measurements, it offers high resolution and low noise, making it ideal for medical instrumentation such as ECG, EEG, and patient monitoring systems. The device operates from a single 2.7V to 5.25V supply and features a data rate up to 8 kSPS per channel. It is housed in a compact 64-pin TQFP (10x10 mm) package.

Detailed Technical Specifications

Key Features

• 8-channel simultaneous sampling
• Low noise: 4 µVpp (typical) at 150 Hz bandwidth
• Integrated right-leg drive amplifier
• Lead-off detection
• Built-in test signals
• SPI-compatible serial interface
• Low power: 6 mW (8 channels at 8 kSPS)

Target Applications

• ECG (Electrocardiogram) monitors for hospitals and wearable devices
• EEG (Electroencephalogram) systems for brain activity monitoring
• Patient monitoring systems in ICUs and operating rooms
• Fitness and sports performance trackers (e.g., heart rate monitors)
• Sleep apnea diagnostic equipment
• Industrial process control for low-frequency signal acquisition
