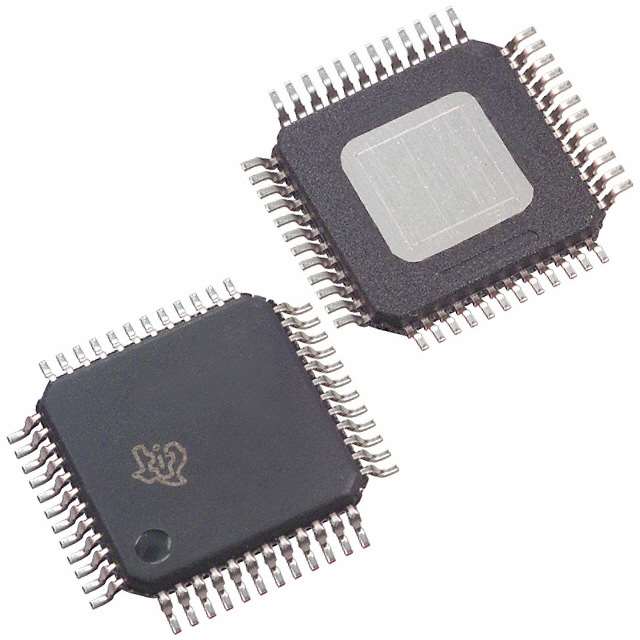

ADS1258IPHPREP TI Analog to Digital Converters | 48-HTQFP (7x7) | 24-bit, 125kSPS

Product Overview

The ADS1258IPHPREP is a high-performance, 24-bit, delta-sigma analog-to-digital converter (ADC) from Texas Instruments, designed for precision measurement applications. It features a maximum sampling rate of 125 kSPS and operates from a single 5V supply. The device includes an integrated multiplexer (up to 16 inputs), programmable gain amplifier (PGA), and a digital filter, making it ideal for multi-channel data acquisition systems. Housed in a 48-pin HTQFP package (7x7 mm), it is specified for extended industrial temperature ranges and is qualified for defense and aerospace applications.

Detailed Technical Specifications

Key Features

• 24-bit resolution with no missing codes
• Low noise: 2.5 µVpp (PGA=1, 125 kSPS)
• Programmable gain: 1, 2, 4, 8, 16, 32, 64
• Integrated 16-channel multiplexer
• Digital filter with programmable data rate
• SPI-compatible serial interface
• Self-calibration and system calibration
• Low power: 38 mW typical at 125 kSPS
• Extended temperature range: -55°C to +125°C
• Enhanced product (EP) for harsh environments

Target Applications

• Precision data acquisition systems for 5G base station power monitoring
• Industrial process control (e.g., temperature, pressure sensors)
• Medical instrumentation (e.g., patient monitoring, ECG)
• Automotive battery management systems (BMS)
• Aerospace and defense (e.g., flight control, radar)
• Seismic and vibration analysis
• Weigh scales and load cells

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1258IPHPREP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
