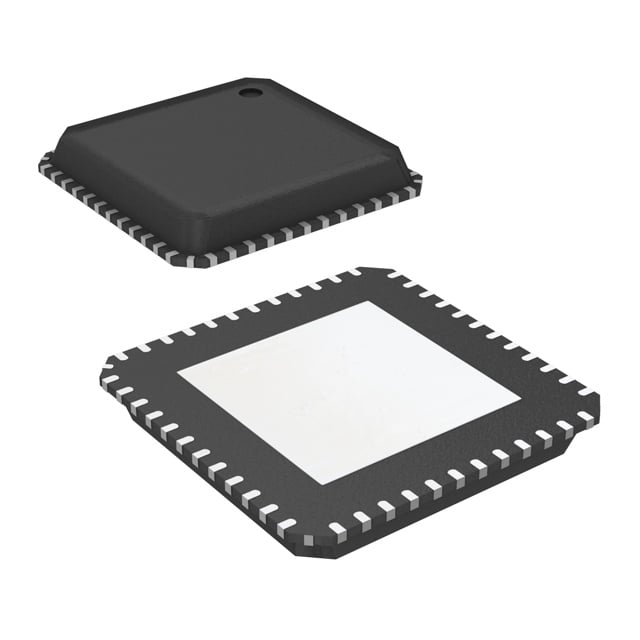

ADS1258IRTCR TI Analog-to-Digital Converter | 48-VQFN (7x7) | 24-Bit, 125kSPS, 16-Channel

Product Overview

The ADS1258IRTCR is a high-performance, 24-bit, delta-sigma analog-to-digital converter (ADC) from Texas Instruments. It features a 16-channel multiplexer, programmable gain amplifier (PGA), and a 125kSPS maximum data rate. The device operates from a single 5V supply and is housed in a compact 48-VQFN (7x7) package. It is designed for precision measurement applications requiring high resolution and low noise.

Detailed Technical Specifications

Key Features

• 24-bit resolution with no missing codes
• 16-channel multiplexer (8 differential pairs)
• Programmable gain amplifier (PGA) with gains of 1, 2, 4, 8, 16, 32, 64, 128
• Low noise: 2.5µVpp at 125SPS (PGA=128)
• Data rates up to 125kSPS
• SPI-compatible serial interface
• Internal temperature sensor
• Low power consumption: 38mW at 125kSPS
• Package: 48-VQFN (7x7)

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Medical instrumentation (e.g., patient monitoring systems)
• Test and measurement equipment (e.g., data acquisition systems)
• 5G base station power monitoring
• Automotive battery management systems
• Dashboard instrumentation
