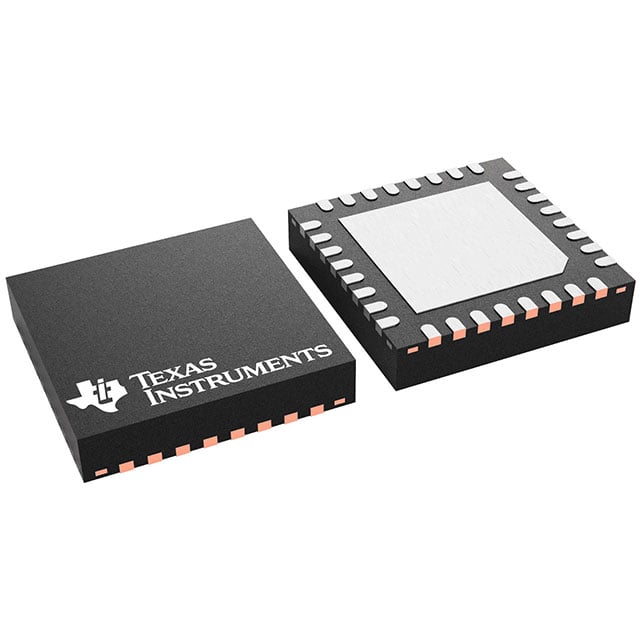

ADS1261BIRHBR TI Analog-to-Digital Converter | 32-VQFN (5x5) | 24-Bit, 40 kSPS, PGA

Product Overview

The ADS1261BIRHBR is a precision, 24-bit, delta-sigma analog-to-digital converter (ADC) from Texas Instruments. It features an integrated programmable gain amplifier (PGA), voltage reference, and oscillator, making it a complete data acquisition solution. The device operates from a 2.7V to 5.25V supply and supports data rates up to 40 kSPS. It is designed for high-accuracy measurement applications such as industrial process control, weigh scales, and medical instrumentation.

Detailed Technical Specifications

Key Features

• 24-bit delta-sigma ADC with integrated PGA (gain up to 128)
• Low noise: 7.5 nV/√Hz at gain 128
• Data rates: 2.5 SPS to 40 kSPS
• Internal voltage reference: 2.5V with 5 ppm/°C drift
• Internal oscillator with no external components required
• 5 differential or 10 single-ended inputs via multiplexer
• SPI-compatible serial interface
• Cycle-by-cycle conversion control
• Temperature sensor and burnout current sources
• Operating temperature range: -40°C to +125°C

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Weigh scales and load cell measurement
• Medical instrumentation (e.g., patient monitoring, infusion pumps)
• 5G base station power monitoring
• Automotive battery management systems
• Precision sensor measurement (e.g., pressure, temperature)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1261BIRHBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
