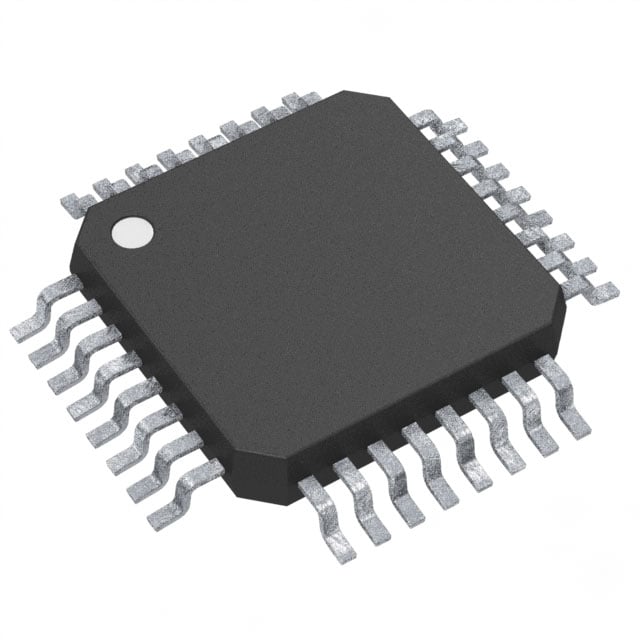

ADS1291IPBS TI Analog Front End | 32-TQFP (5x5) | 24-bit, 2-Channel, Low-Power

Product Overview

The ADS1291IPBS is a low-power, 2-channel, 24-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and an oscillator. It is specifically designed for biopotential measurements such as ECG and EEG applications. The device operates from a single 2.7V to 5.25V supply and features a high common-mode rejection ratio (CMRR) of 110 dB, making it ideal for noisy environments. The ADS1291IPBS is housed in a compact 32-pin TQFP package (5x5 mm) and offers a flexible input multiplexer, lead-off detection, and a built-in test signal. Its low power consumption (0.75 mW/channel) and small footprint make it suitable for portable and battery-powered medical devices.

Detailed Technical Specifications

Key Features

• Two-channel, 24-bit ΔΣ ADC with integrated PGA
• Low noise: 4 µVpp (typical)
• High CMRR: 110 dB
• Programmable data rate: 125 SPS to 8 kSPS
• Built-in lead-off detection and test signal
• Internal reference and oscillator
• SPI-compatible serial interface
• Low power: 0.75 mW per channel
• Small package: 32-TQFP (5x5 mm)

Target Applications

• ECG (electrocardiogram) monitors: patient monitoring systems, Holter monitors
• EEG (electroencephalogram) devices: brain-computer interfaces, sleep studies
• Portable medical devices: fitness trackers, wearable health monitors
• Industrial process control: precision measurement systems
• 5G base station: power amplifier linearization feedback
• Automotive: battery management systems, dashboard instrumentation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1291IPBS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
