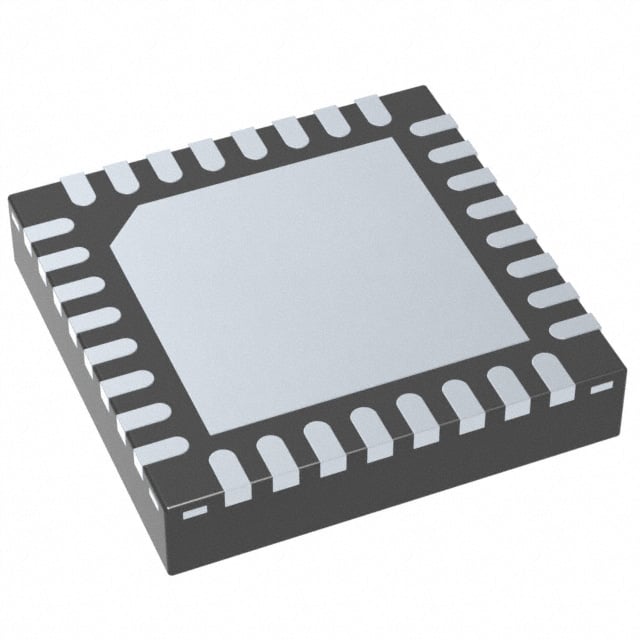

ADS1291IRSMT TI Analog Front End | 32-VQFN (4x4) | 24-bit, 2-Channel, Low-Power

Product Overview

The ADS1291IRSMT is a low-power, 2-channel, 24-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and an onboard oscillator. Designed for biopotential measurements, it is ideal for medical instrumentation such as ECG, EEG, and patient monitoring systems. The device operates from a single 2.7V to 5.25V supply and features a data rate up to 8 kSPS. Housed in a compact 32-VQFN (4x4 mm) package, it offers excellent performance in a small footprint.

Detailed Technical Specifications

Key Features

• Two differential or four single-ended inputs
• Integrated PGA with gain of 1, 2, 3, 4, 6, 8, or 12
• Internal reference: 2.5V or 4.096V
• Onboard oscillator and SPI interface
• Lead-off detection and test signal generation
• Low power: 0.75 mW per channel
• Small package: 32-VQFN (4x4 mm)

Target Applications

• ECG (Electrocardiogram) monitors: e.g., Philips IntelliVue patient monitors
• EEG (Electroencephalogram) systems: e.g., NeuroSky brainwave sensors
• Patient monitoring devices: e.g., GE Healthcare bedside monitors
• Wearable health trackers: e.g., Fitbit heart rate monitors
• Industrial process control: e.g., Siemens PLC analog input modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1291IRSMT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
