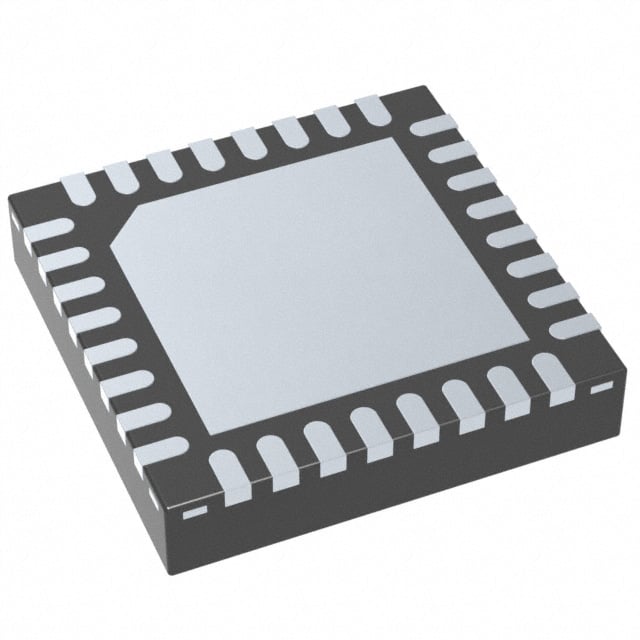

ADS1292RIRSMT TI ECG Front-End | 32-VQFN (4x4) | 2-Ch, 24-Bit, Low-Power

Product Overview

The ADS1292RIRSMT is a low-power, 2-channel, 24-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and an onboard oscillator. It is specifically designed for medical electrocardiogram (ECG) and biopotential measurement applications. The device operates from a single 2.7V to 5.25V supply and consumes only 335 µW per channel, making it ideal for portable and battery-powered systems. The ADS1292RIRSMT is offered in a compact 32-pin VQFN (4x4 mm) package, enabling space-constrained designs.

Detailed Technical Specifications

Key Features

• Two low-noise PGAs and two high-resolution ADCs
• Built-in right-leg drive (RLD) amplifier
• Lead-off detection
• Wilson center terminal (WCT)
• Built-in oscillator and reference
• SPI-compatible serial interface
• Low power: 0.335 mW/channel
• Small package: 4x4 mm QFN

Target Applications

• Portable ECG monitors (e.g., Holter monitors, event recorders)
• Wearable health patches (e.g., continuous cardiac monitoring)
• Patient monitoring systems (e.g., bedside monitors in hospitals)
• Defibrillators and AEDs
• Fitness and sports heart rate monitors
• 5G base station power management (biopotential sensing for remote health)
• Automotive driver alertness detection (dashboard integration)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1292RIRSMT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
