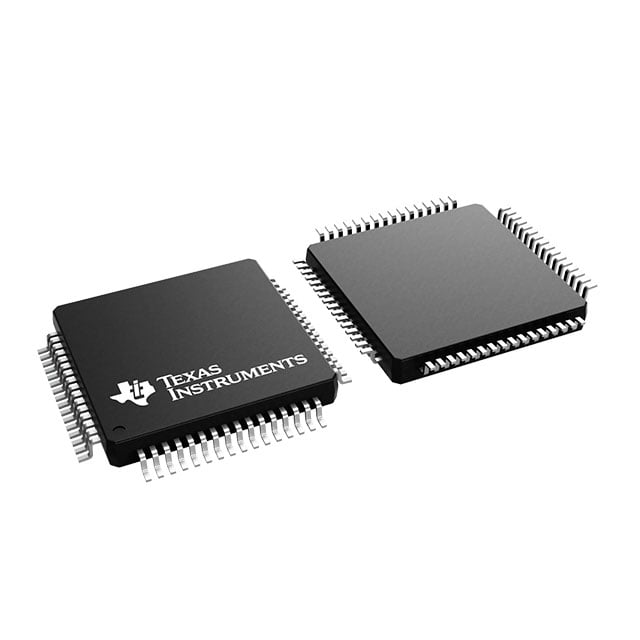

ADS1294IPAGR TI Analog Front End | 64-TQFP (10x10) | 4-Ch, 24-Bit, Low-Power

Product Overview

The ADS1294IPAGR is a low-power, 4-channel, 24-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and oscillator. Designed for high-resolution measurement applications, it offers excellent noise performance and data rates up to 32 kSPS. The device operates from a single 2.7V to 5.25V supply and is specified over the industrial temperature range of –40°C to +85°C. Housed in a compact 64-pin TQFP (10x10 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 4 differential or 8 single-ended inputs
• Low noise: 4 µVPP (G = 1, 20 SPS)
• Integrated PGA with gains of 1, 2, 3, 4, 6, 8, or 12
• Built-in 2.5V reference and oscillator
• SPI-compatible serial interface
• Lead-free and RoHS compliant

Target Applications

The ADS1294IPAGR is suitable for a wide range of precision measurement applications, including:

• 5G base station power monitoring
• Automotive battery management systems (BMS)
• Industrial process control (e.g., pressure sensors)
• Medical instrumentation (e.g., patient monitoring)
• Dashboard display systems for electric vehicles
