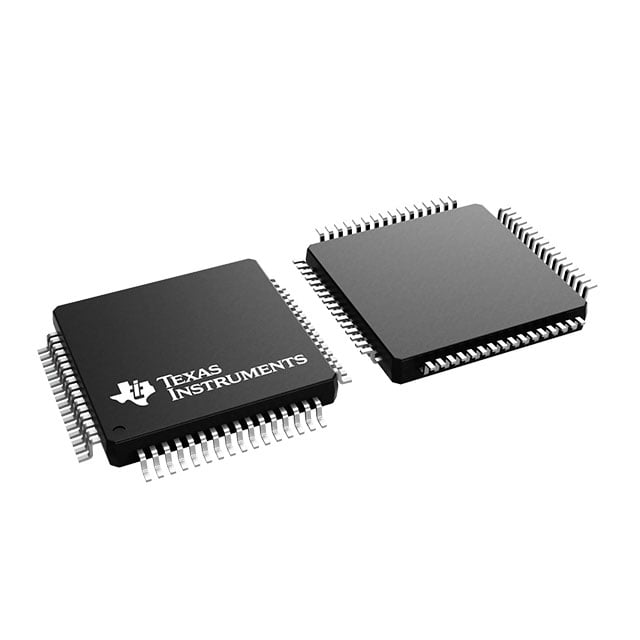

ADS1299-6PAG TI Analog Front End | 64-TQFP (10x10) | 8-Ch, 24-Bit, Low Noise

Product Overview

The ADS1299-6PAG is a low-noise, 8-channel, 24-bit delta-sigma analog front-end (AFE) from Texas Instruments, designed for biopotential measurements such as ECG, EEG, and EMG. It integrates programmable gain amplifiers (PGAs), internal reference, and an oscillator, making it ideal for high-precision medical and industrial applications. The device operates from a single 5V supply and features a data rate up to 16 kSPS. Packaged in a 64-TQFP (10x10 mm), it offers a compact solution for multi-channel data acquisition systems.

Detailed Technical Specifications

Key Features

• 8 low-noise PGAs and 8 high-resolution delta-sigma ADCs
• Built-in right-leg drive amplifier, lead-off detection, and test signals
• Low power: 0.75 mW/channel
• Flexible power-down and standby modes
• Internal reference and oscillator
• SPI-compatible serial interface

Target Applications

• Medical ECG/EKG monitors (e.g., Philips IntelliVue patient monitors)
• EEG acquisition systems (e.g., Neuroscan SynAmps)
• EMG measurement devices (e.g., Delsys Trigno)
• Wearable health trackers (e.g., Fitbit Sense)
• Industrial process control (e.g., Siemens SIMATIC)
• 5G base station power monitoring (e.g., Huawei 5G AAU)
