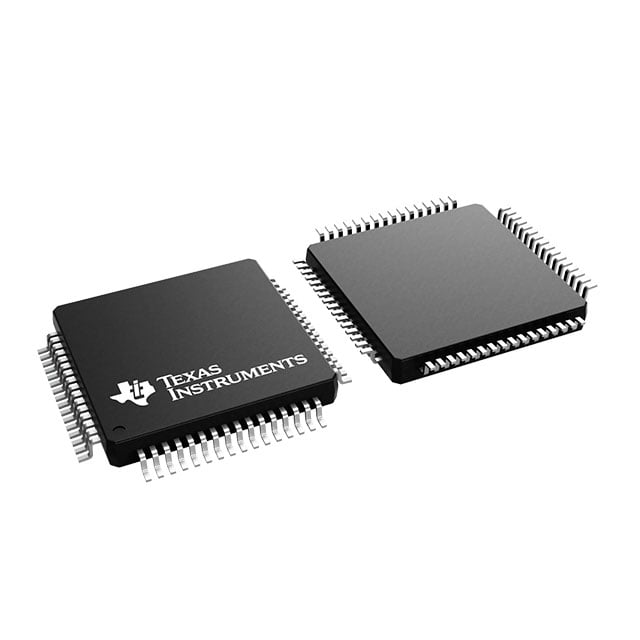

ADS131E04IPAGR TI Analog Front End | 64-TQFP (10x10) | 4-Ch, 24-Bit, 64kSPS

Product Overview

The ADS131E04IPAGR is a 4-channel, 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) with an integrated programmable gain amplifier (PGA), internal reference, and oscillator. Manufactured by Texas Instruments, this device is designed for high-precision measurement applications such as industrial process control, medical instrumentation, and energy metering. It operates from a single 5V analog supply and supports a data rate up to 64 kSPS per channel. The device is housed in a 64-pin TQFP (10x10 mm) package, offering a compact solution for multi-channel data acquisition systems.

Detailed Technical Specifications

Key Features

• Four simultaneous sampling 24-bit ΔΣ ADCs
• Programmable gain amplifier (PGA) with gains of 1, 2, 4, 8, and 12
• Low power consumption: 2.5 mW per channel
• Internal voltage reference and oscillator
• SPI-compatible serial interface
• Data rates from 1.25 kSPS to 64 kSPS
• Offset and gain calibration per channel
• Integrated temperature sensor
• Wide operating temperature range: -40°C to +105°C

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Medical instrumentation (e.g., patient monitoring, ECG)
• Energy metering (e.g., smart meters, power quality analyzers)
• Data acquisition systems (e.g., 5G base station power monitoring)
• Automotive battery management systems (e.g., EV battery voltage sensing)
• Test and measurement equipment (e.g., precision multimeters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS131E04IPAGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
