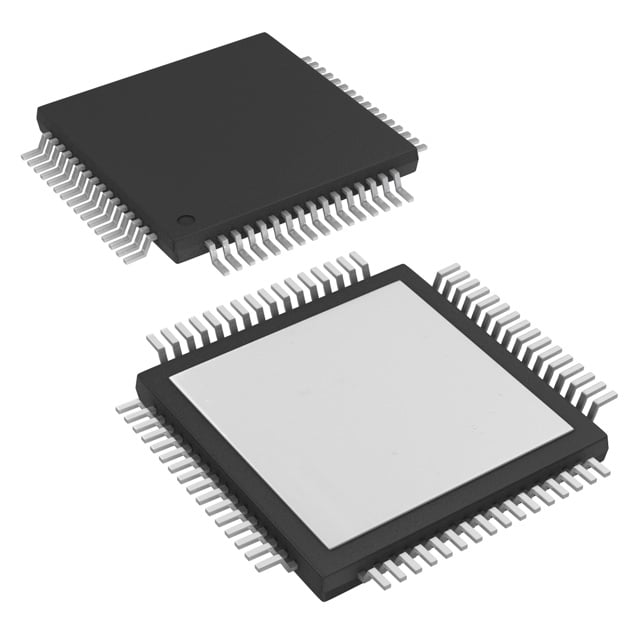

ADS5542IPAP TI ADC | 64-HTQFP (10X10) | 14-Bit, 170MSPS, LVDS

Product Overview

The ADS5542IPAP is a high-performance 14-bit analog-to-digital converter (ADC) from Texas Instruments, offering a maximum sampling rate of 170 MSPS. It operates from a single 3.3V supply and features a low-power consumption of 1.1W. The device includes an internal reference and a high-bandwidth track-and-hold circuit, ensuring excellent dynamic performance for demanding applications. The ADS5542IPAP is available in a compact 64-pin HTQFP (10x10 mm) package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• 14-bit resolution with 170 MSPS sampling rate
• Low power consumption: 1.1W at 170 MSPS
• High SNR: 73.5 dBFS at 70 MHz input
• SFDR: 85 dBc at 70 MHz input
• Internal reference and track-and-hold
• LVDS output interface for reduced noise
• Compact 64-HTQFP (10x10 mm) package

Target Applications

• 5G base station receivers (e.g., Massive MIMO)
• Wireless infrastructure (e.g., remote radio units)
• Medical imaging (e.g., ultrasound systems)
• Test and measurement equipment (e.g., oscilloscopes)
• Radar and electronic warfare systems
• High-speed data acquisition

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS5542IPAP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
