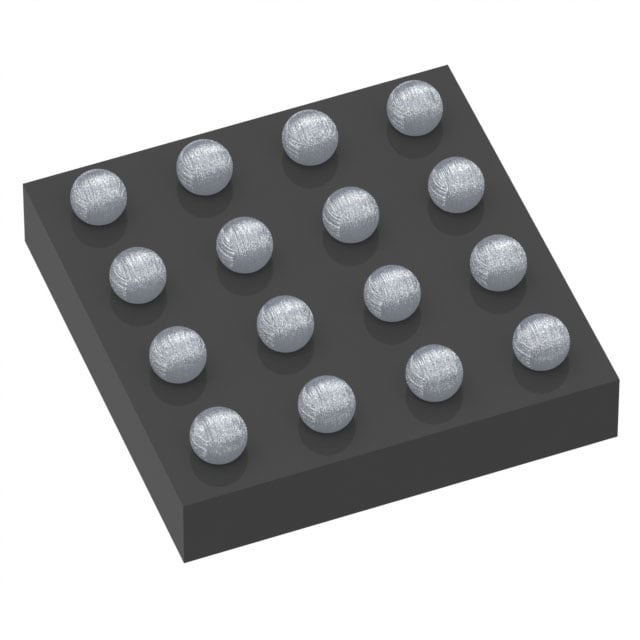

ADS7067IYBHT TI ADC | 16-DSBGA (1.62x1.62) | 16-bit, 8-Ch, 2MSPS

Product Overview

The ADS7067IYBHT is a high-performance, 16-bit, 8-channel successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It features a maximum sampling rate of 2 MSPS and operates from a single 2.35V to 5.5V supply. The device is housed in a compact 16-DSBGA (1.62mm x 1.62mm) package, making it ideal for space-constrained applications. It includes an internal reference, reference buffer, and a programmable sequencer for automatic channel scanning.

Detailed Technical Specifications

Key Features

• 16-bit resolution with no missing codes
• 8-channel input multiplexer with programmable sequencer
• Internal 2.5V reference with 10 ppm/°C drift
• Low power consumption: 1.5 mW at 2 MSPS
• SPI-compatible serial interface with daisy-chain support
• Small footprint: 1.62mm x 1.62mm DSBGA package
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station: RF power monitoring, PA bias control
• Automotive dashboard: Battery voltage monitoring, sensor signal acquisition
• Industrial automation: Multi-channel data acquisition systems
• Medical devices: Patient monitoring, portable instrumentation
• Test and measurement: Oscilloscopes, data loggers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7067IYBHT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ADS7067IYBHT 是德州儀器（TI）推出的一款高性能16位、8通道逐次逼近寄存器（SAR）模數轉換器（ADC）。最高採樣率為2 MSPS，工作電源電壓範圍為2.35V至5.5V。器件採用緊湊的16-DSBGA（1.62mm x 1.62mm）封裝，非常適合空間受限的應用。它包含內部參考電壓、參考緩衝器和用於自動通道掃描的可編程序列器。

詳細技術參數

核心特性

• 16位分辨率，無漏碼
• 8通道輸入多路復用器，帶可編程序列器
• 內部2.5V參考電壓，漂移10 ppm/°C
• 低功耗：2 MSPS時僅1.5 mW
• SPI兼容串行接口，支持菊花鏈
• 小尺寸：1.62mm x 1.62mm DSBGA封裝
• 寬工作溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G基站：射頻功率監控、PA偏置控制
• 汽車儀表盤：電池電壓監控、傳感器信號採集
• 工業自動化：多通道數據採集系統
• 醫療設備：病人監護、便攜式儀器
• 測試與測量：示波器、數據記錄儀

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ADS7067IYBHT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
