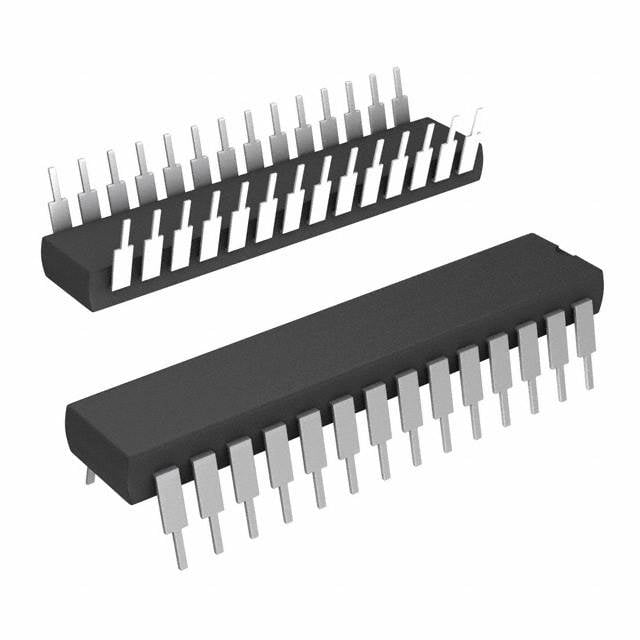

ADS774JE TI Analog-to-Digital Converter | 28-PDIP | 12-Bit, 8-Channel, 100ksps
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The ADS774JE is a high-performance 12-bit successive approximation analog-to-digital converter (ADC) from Texas Instruments. It features 8 analog input channels, a maximum sampling rate of 100 kilosamples per second (ksps), and operates from a single +5V supply. Housed in a 28-pin PDIP package, this device offers a parallel interface for easy connection to microcontrollers and DSPs. The ADS774JE is designed for industrial and instrumentation applications requiring high accuracy and low power consumption.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 8 (multiplexed) |
| Sampling Rate | 100 ksps (max) |
| Input Type | Single-ended |
| Interface | Parallel (8-bit or 16-bit) |
| Supply Voltage | +5V (±5%) |
| Power Consumption | 75 mW (typical) |
| Package | 28-PDIP |
| Operating Temperature | -40°C to +85°C |
| INL (Integral Nonlinearity) | ±1 LSB (max) |
| DNL (Differential Nonlinearity) | ±1 LSB (max) |
| Signal-to-Noise Ratio (SNR) | 70 dB (typical) |
Key Features
- 12-bit resolution with no missing codes
- 8-channel analog multiplexer
- 100 ksps maximum sampling rate
- Single +5V supply operation
- Low power: 75 mW typical
- Parallel interface with 8-bit or 16-bit data bus
- Internal sample-and-hold
- Wide operating temperature range
Target Applications
- Industrial process control (e.g., PLC analog input modules)
- Data acquisition systems (e.g., 5G base station monitoring)
- Instrumentation (e.g., digital multimeters, oscilloscopes)
- Automotive (e.g., battery management systems, dashboard sensors)
- Medical equipment (e.g., patient monitoring systems)
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS774JE. Our core advantages include:
- 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
- In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
- HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
- Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
- BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.
- 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
- RoHS Compliant: All electronic components comply with international environmental and safety standards.
- Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
