ADS774KP TI ADC | 28-PDIP | 12-Bit, 8-Channel, 100ksps

Product Overview

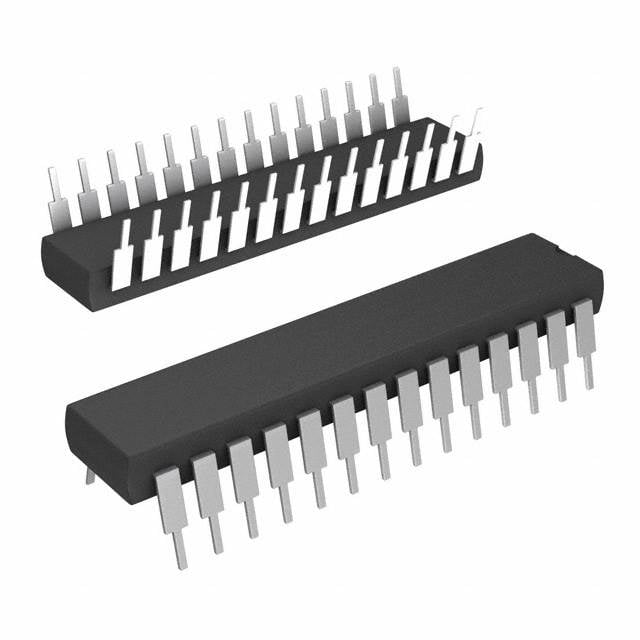

The ADS774KP is a 12-bit successive approximation analog-to-digital converter (ADC) from Texas Instruments. It features 8 analog input channels, a maximum sampling rate of 100 kilosamples per second (ksps), and operates from a single +5V supply. The device is housed in a 28-pin plastic dual-in-line package (PDIP) and offers a parallel interface for easy connection to microprocessors. Its low power consumption and high accuracy make it suitable for industrial control, data acquisition, and instrumentation applications.

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• 8-channel analog multiplexer
• 100 ksps maximum sampling rate
• Single +5V supply operation
• Low power: 215 mW typical
• Parallel interface with 8-bit or 12-bit data bus
• Internal sample-and-hold
• Bipolar input capability
• 28-pin PDIP package for easy prototyping

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Data acquisition systems (e.g., portable data loggers)
• Instrumentation (e.g., digital multimeters, oscilloscopes)
• Medical equipment (e.g., patient monitoring systems)
• Automotive test systems (e.g., battery voltage monitoring)
• 5G base station power monitoring
• Automotive dashboard sensor interface

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS774KP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
