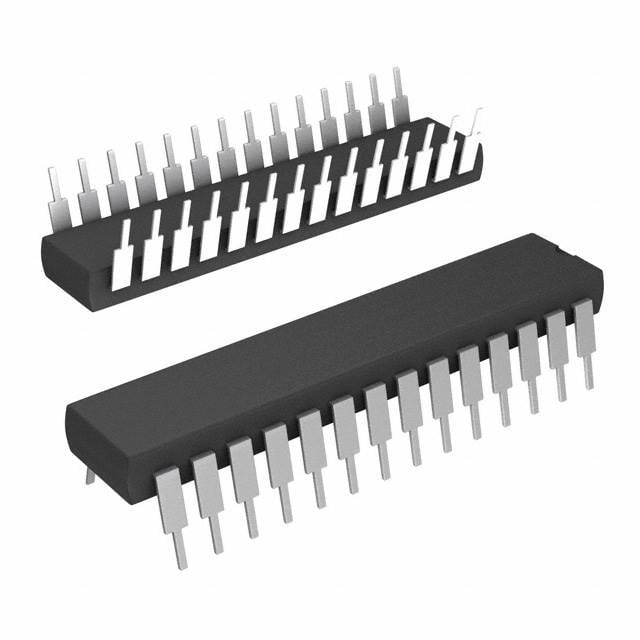

ADS7804P TI Analog-to-Digital Converter | 28-PDIP | 12-Bit, 100kSPS

Product Overview

The ADS7804P is a high-performance, 12-bit analog-to-digital converter (ADC) from Texas Instruments. It features a successive approximation register (SAR) architecture with a maximum sampling rate of 100 kSPS. The device operates from a single +5V supply and includes an internal sample-and-hold amplifier, reference, and clock. It is available in a 28-pin PDIP package, making it suitable for industrial and embedded applications requiring precision analog-to-digital conversion.

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• 100 kSPS sampling rate
• Internal sample-and-hold
• Single +5V supply operation
• Low power: 215 mW max
• Parallel interface for easy connection
• Bipolar input range: ±10V
• 28-pin PDIP package

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Data acquisition systems (e.g., portable data loggers)
• Medical instrumentation (e.g., patient monitoring devices)
• Automotive test equipment (e.g., battery test systems)
• Communication infrastructure (e.g., 5G base station power monitoring)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7804P. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
