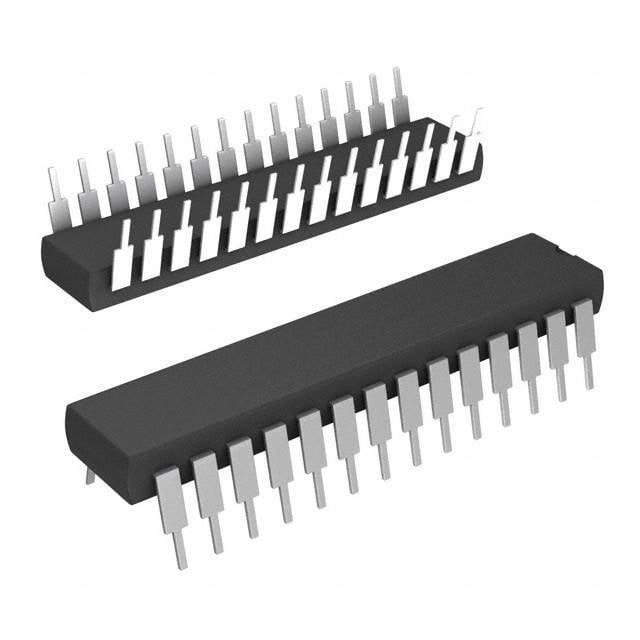

ADS7820PB TI Analog-to-Digital Converter | 28-DIP | 12-Bit, 100kSPS

Product Overview

The ADS7820PB is a high-performance 12-bit analog-to-digital converter (ADC) from Texas Instruments, designed for precision data acquisition systems. Housed in a 28-pin DIP package, it offers a sampling rate of 100 kSPS and operates from a single +5V supply. The device features a successive approximation register (SAR) architecture, providing excellent linearity and low noise. It includes an internal sample-and-hold, clock, and reference, simplifying system design. The ADS7820PB is ideal for industrial control, medical instrumentation, and communication systems requiring high accuracy and reliability.

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• 100 kSPS sampling rate
• Single +5V supply operation
• Internal sample-and-hold and reference
• Low power: 50 mW typical
• Parallel interface for easy connection to microcontrollers
• Excellent DC and AC performance
• Wide operating temperature range

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Medical instrumentation (e.g., patient monitoring systems)
• Data acquisition systems (e.g., 5G base station power monitoring)
• Automotive (e.g., dashboard sensor interfaces)
• Communication systems (e.g., baseband processing)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7820PB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
