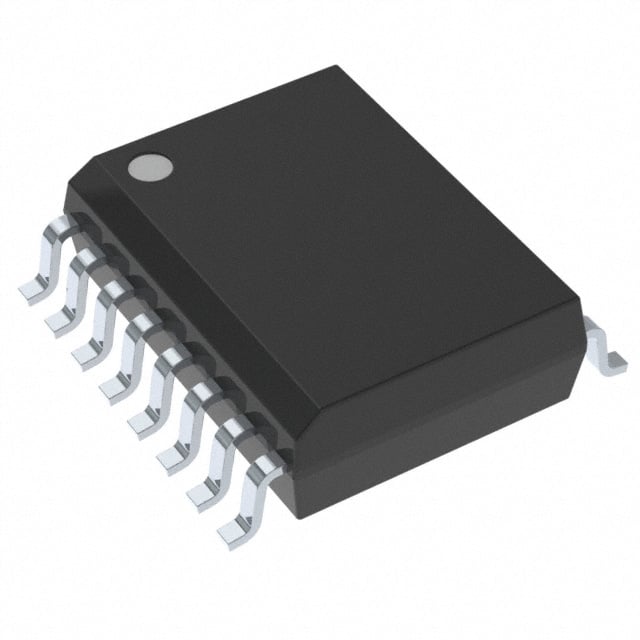

ADS7843E TI Touch Screen Controller | 16-SSOP | 12-bit, 125kHz

Product Overview

The ADS7843E is a 12-bit, 4-wire resistive touch screen controller from Texas Instruments. It features a synchronous serial interface and operates from a single 2.2V to 5.25V supply. The device includes a 2.5V internal reference, but can also be used with an external reference. It is available in a 16-pin SSOP package.

Detailed Technical Specifications

Key Features

• 12-bit SAR ADC
• 4-wire touch screen interface
• Single supply operation
• Low power: 0.5 mW at 125 kHz
• On-chip reference and driver
• Shutdown mode: 1 µA

Target Applications

• Touch screen controllers for industrial HMIs (e.g., Siemens SIMATIC HMI)
• Point-of-sale terminals (e.g., Verifone VX 520)
• Medical devices (e.g., GE Healthcare patient monitors)
• Automotive infotainment systems (e.g., Tesla Model S dashboard)
• Portable instruments (e.g., Fluke 87V multimeter)
