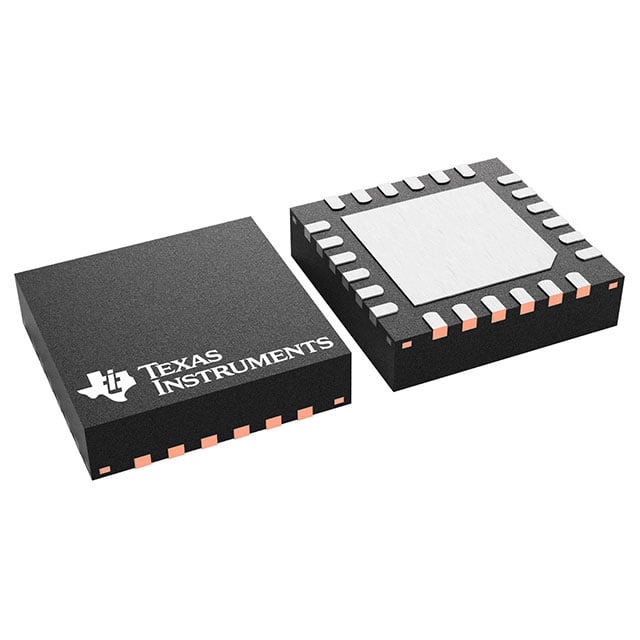

ADS7863ARGET TI ADC | 24-VQFN (4x4) | 12-Bit, 2-Ch, 1MSPS

Product Overview

The ADS7863ARGET is a high-performance, dual-channel, 12-bit analog-to-digital converter (ADC) from Texas Instruments. It operates at a maximum sampling rate of 1 MSPS per channel and features a successive approximation register (SAR) architecture. The device is housed in a compact 24-pin VQFN package (4x4 mm), making it ideal for space-constrained applications. It offers excellent linearity and low noise, with a typical signal-to-noise ratio (SNR) of 72 dB and a spurious-free dynamic range (SFDR) of 85 dB at 100 kHz input frequency.

Detailed Technical Specifications

Key Features

• Dual-channel simultaneous sampling with true 12-bit performance
• High-speed SPI interface with up to 40 MHz clock
• Low power consumption: 12 mW at 5V, 1 MSPS
• Excellent DC and AC performance: INL ±1 LSB, SNR 72 dB, SFDR 85 dB
• Wide analog input voltage range: 0 to VREF (up to 5V)
• Internal reference (2.5V) with 10 ppm/°C drift
• Small footprint: 4x4 mm QFN package

Target Applications

• 5G base station: Used for digital predistortion (DPD) feedback path in power amplifier linearization
• Automotive dashboard: Battery voltage and current monitoring in electric vehicles
• Industrial automation: Multi-channel data acquisition for motor control and sensor interfaces
• Medical equipment: Portable ultrasound and patient monitoring systems
• Test and measurement: Oscilloscopes and spectrum analyzers requiring high-speed dual-channel acquisition
