ADS7863IDBQ TI ADC | 24-SSOP | 500kSPS, 12-Bit, Dual-Channel

Product Overview

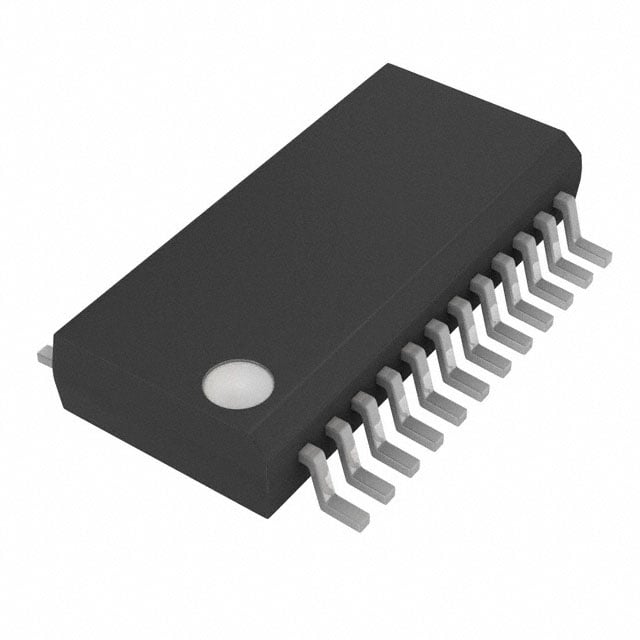

The ADS7863IDBQ is a high-speed, dual-channel, 12-bit analog-to-digital converter (ADC) from Texas Instruments. It operates at a sampling rate of up to 500 kSPS per channel and features a successive approximation register (SAR) architecture. The device is housed in a compact 24-pin SSOP package, making it suitable for space-constrained applications. It offers excellent linearity and low noise performance, with an SNR of 72 dB and a DNL of ±0.5 LSB. The ADS7863IDBQ operates from a single 5V supply and includes a 2.5V internal reference, though an external reference can also be used. The digital interface is SPI-compatible, allowing easy integration with microcontrollers and DSPs.

Detailed Technical Specifications

Key Features

• Dual-channel simultaneous sampling
• High throughput: 500 kSPS per channel
• Low power: 35 mW at 500 kSPS
• Internal 2.5V reference with 5 ppm/°C drift
• SPI-compatible serial interface
• Wide operating temperature range
• Small 24-SSOP package

Target Applications

• 5G base station power amplifier linearization
• Automotive battery management systems
• Industrial motor control
• Medical imaging equipment
• Data acquisition systems
• Test and measurement instruments

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7863IDBQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
