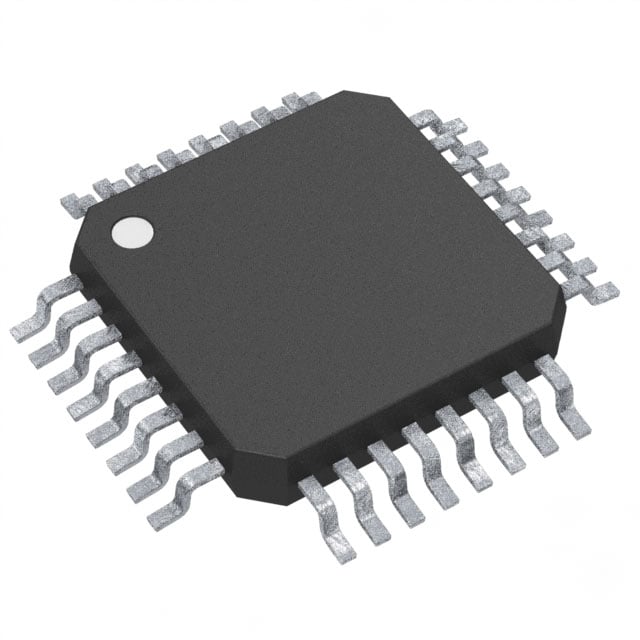

ADS7865IPBSR TI ADC | 32-TQFP (5x5) | 500kSPS, 12-Bit, 4-Ch

Product Overview

The ADS7865IPBSR is a high-speed, low-power, 12-bit analog-to-digital converter (ADC) from Texas Instruments. It features four simultaneous sampling inputs, a maximum sampling rate of 500 kSPS per channel, and operates from a single 5V supply. The device is housed in a compact 32-pin TQFP (5x5 mm) package, making it ideal for space-constrained applications. Its architecture includes a capacitor-based SAR ADC with inherent sample-and-hold, providing excellent AC and DC performance.

Detailed Technical Specifications

Key Features

• Four simultaneous sampling channels with 500 kSPS per channel
• 12-bit resolution with no missing codes
• Low power consumption: 15 mW typical at 500 kSPS
• Wide analog input range: 0V to Vref
• Parallel interface with high-speed data transfer
• Power-down mode for reduced power consumption
• Pin-compatible with ADS7864 and ADS7865 family

Target Applications

• Motor control in industrial drives (e.g., servo drives)
• Power quality monitoring in smart grid equipment
• Data acquisition systems for 5G base station testing
• Automotive battery management systems (BMS)
• Medical imaging equipment (e.g., ultrasound systems)
• Instrumentation and control systems
