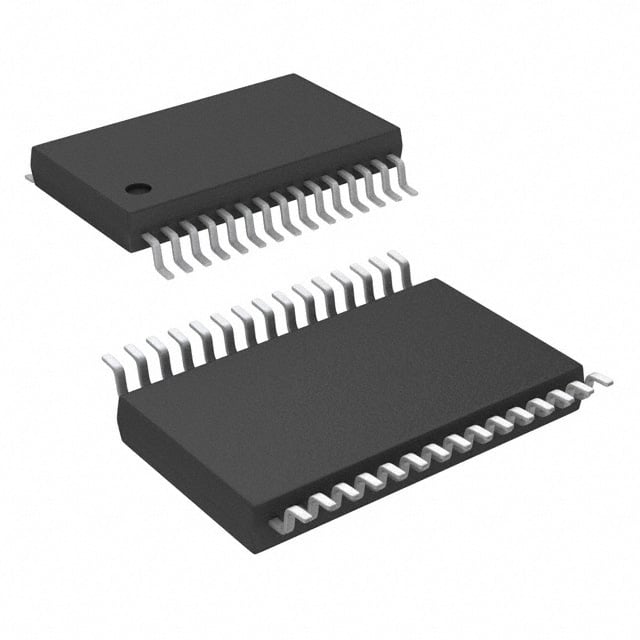

ADS7954QDBTRQ1 TI ADC | 30-TSSOP | 4-Ch, 12-Bit, 1MSPS

Product Overview

The ADS7954QDBTRQ1 is a 4-channel, 12-bit, 1 MSPS successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It features a unipolar single-ended input, an internal reference, and a serial SPI interface. The device operates from a single 2.7V to 5.25V supply and is specified for the automotive temperature range of -40°C to +125°C. Housed in a 30-pin TSSOP package, this ADC is AEC-Q100 qualified for automotive applications.

Detailed Technical Specifications

Key Features

• 4-channel, 12-bit SAR ADC with 1 MSPS throughput
• Unipolar single-ended input range: 0V to VREF
• Internal 2.5V reference (drift 10 ppm/°C typical)
• SPI-compatible serial interface with daisy-chain capability
• Low power: 1.5 mW at 1 MSPS (typical)
• Wide supply range: 2.7V to 5.25V
• Extended temperature range: -40°C to +125°C
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive battery management systems (BMS) for electric vehicles (EV) and hybrid electric vehicles (HEV)
• Motor control in automotive power steering and braking systems
• Sensor interfaces for engine control units (ECU) and transmission control
• Industrial process control and data acquisition systems
• Portable instrumentation and battery-powered equipment
• 5G base station power monitoring and control
• Dashboard and infotainment systems in automotive

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7954QDBTRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
