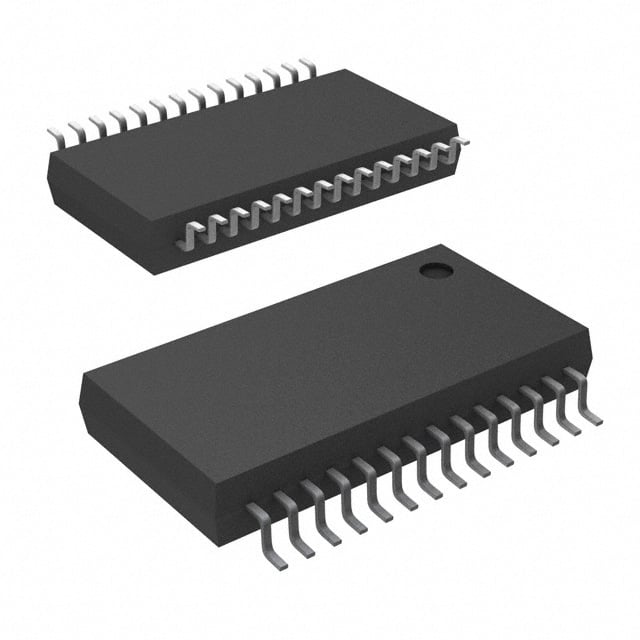

ADS803E TI Analog-to-Digital Converter | 28-SSOP | 12-Bit, 5 MSPS

Product Overview

The ADS803E is a high-speed, 12-bit analog-to-digital converter (ADC) from Texas Instruments. It operates at a maximum sampling rate of 5 MSPS and is housed in a compact 28-pin SSOP package. The device features a low power consumption of typically 115 mW at 5 MSPS, making it suitable for portable and power-sensitive applications. It includes an internal reference and a track-and-hold circuit, simplifying system design. The ADS803E offers excellent dynamic performance with a signal-to-noise ratio (SNR) of 70 dB and a spurious-free dynamic range (SFDR) of 80 dB at Nyquist input frequencies.

Detailed Technical Specifications

Key Features

• 12-bit resolution with 5 MSPS sampling rate
• Low power: 115 mW at 5 MSPS
• Internal reference and track-and-hold
• Excellent dynamic performance: 70 dB SNR, 80 dB SFDR
• Single 5V supply operation
• Parallel CMOS output interface
• 28-pin SSOP package for space-constrained designs

Target Applications

The ADS803E is ideal for applications requiring high-speed data conversion with low power consumption. Specific examples include:

• 5G base station receiver signal chain (IF sampling)
• Automotive dashboard camera video digitization
• Portable medical ultrasound equipment
• High-speed data acquisition systems
• Digital oscilloscopes and spectrum analyzers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS803E. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
