ADS825E TI ADC | 28-SSOP | 16-Bit, 1MSPS, Serial Interface

Product Overview

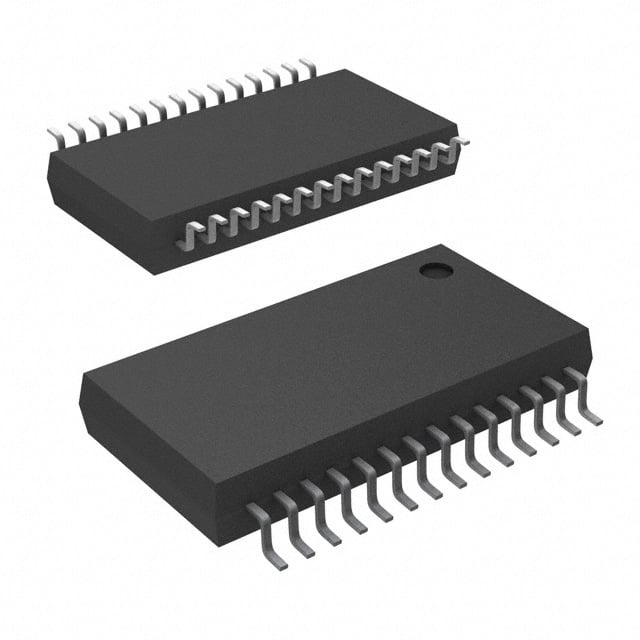

The ADS825E is a high-performance, 16-bit, 1MSPS analog-to-digital converter (ADC) from Texas Instruments. It features a successive approximation register (SAR) architecture with a serial interface, making it ideal for precision data acquisition systems. The device operates from a single 5V supply and consumes only 50mW typical power. Housed in a compact 28-pin SSOP package, the ADS825E offers excellent linearity and low noise, suitable for industrial, medical, and communication applications.

Detailed Technical Specifications

Key Features

• 16-bit resolution with no missing codes
• 1 MSPS throughput rate
• Low power: 50mW typical at 5V
• Serial interface (SPI/QSPI/MICROWIRE/DSP compatible)
• Internal sample-and-hold
• Excellent DC performance: ±1 LSB INL, ±0.5 LSB DNL
• Signal-to-noise ratio (SNR): 86 dB typical
• Total harmonic distortion (THD): -95 dB typical
• Power-down mode: 1µA typical
• 28-pin SSOP package for space-constrained designs

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Medical instrumentation (e.g., patient monitoring systems, ECG)
• Data acquisition systems (e.g., portable data loggers)
• Communication systems (e.g., base station control channels)
• Automotive (e.g., battery management systems)
• Test and measurement equipment (e.g., digital multimeters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS825E. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
