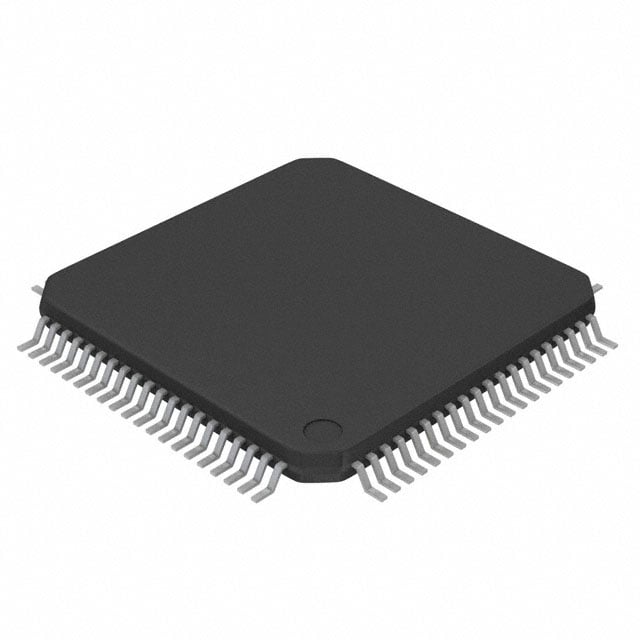

ADS8686SIPZA TI ADC | 80-LQFP (14x14) | 16-Ch, 500kSPS, 16-Bit

Product Overview

The ADS8686SIPZA from Texas Instruments is a 16-bit, 16-channel, successive-approximation register (SAR) analog-to-digital converter (ADC) with a maximum sampling rate of 500 kSPS. It operates from a single 5V supply and features an integrated analog front-end, including a programmable gain amplifier (PGA) and a low-pass filter, simplifying system design. The device is housed in an 80-pin LQFP package (14x14 mm) and is specified over the industrial temperature range of -40°C to +125°C.

Detailed Technical Specifications

Key Features

• 16-bit resolution with no missing codes
• 16 single-ended input channels
• 500 kSPS throughput rate
• Integrated PGA with gains of 1, 2, 4, 8, 16, 32, 64, 128
• On-chip 2.5V reference with 5 ppm/°C drift
• SPI-compatible serial interface
• Low power: 12.5 mW at 500 kSPS
• Wide operating temperature range

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Data acquisition systems (e.g., 5G base station monitoring)
• Automotive battery management systems (e.g., dashboard instrumentation)
• Medical instrumentation (e.g., patient monitoring)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS8686SIPZA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
