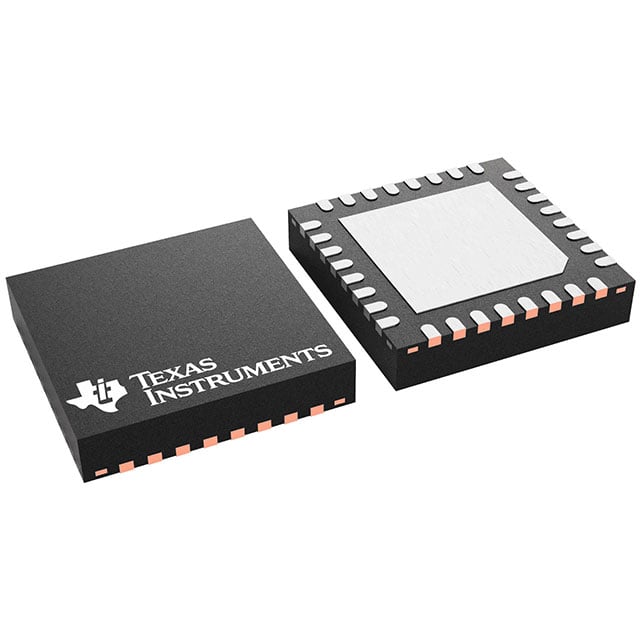

ADS9224RIRHBT TI ADC | 32-VQFN (5x5) | 16-Bit, 10MSPS, Dual

Product Overview

The ADS9224RIRHBT is a high-performance, dual-channel, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It operates at a sampling rate of up to 10 MSPS per channel, offering excellent dynamic performance and low power consumption. The device is housed in a compact 32-pin VQFN (5x5 mm) package, making it ideal for space-constrained applications. It features an integrated reference buffer, internal reference, and a high-speed serial interface (SPI) for easy integration with microcontrollers and FPGAs.

Detailed Technical Specifications

Key Features

• Dual 16-bit SAR ADC with 10 MSPS per channel
• Excellent AC performance: 92 dB SNR, 105 dB SFDR
• Low power: 155 mW at full speed
• Integrated reference buffer and internal reference (2.5V)
• Flexible input range: 0 to VREF (differential) or ±VREF (pseudo-differential)
• High-speed SPI interface with daisy-chain support
• Small 5x5 mm VQFN package
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station transceivers (e.g., digital predistortion feedback)
• Automotive radar and advanced driver-assistance systems (ADAS) like dashboard cameras
• Medical imaging (e.g., ultrasound systems)
• Industrial data acquisition and test equipment
• Software-defined radio (SDR) and communication systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS9224RIRHBT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
