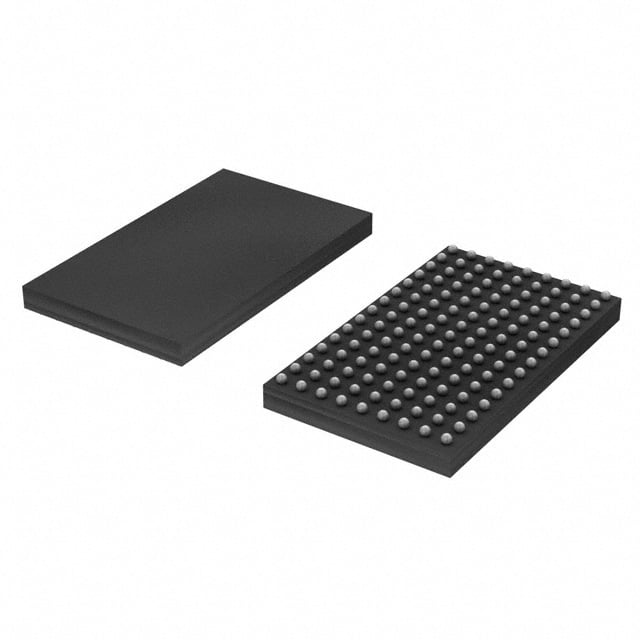

AFE5805ZCF TI Analog Front-End | 135-NFBGA(15X9) | 8-Ch, 65MSPS, 14-Bit

Product Overview

The AFE5805ZCF from Texas Instruments is a high-performance analog front-end (AFE) designed for ultrasound imaging and other medical imaging applications. It integrates eight channels of low-noise amplifiers (LNAs), variable gain amplifiers (VGAs), anti-aliasing filters (AAFs), and 14-bit analog-to-digital converters (ADCs) with sampling rates up to 65 MSPS. The device is housed in a compact 135-ball NFBGA package (15x9 mm), enabling high-density system designs.

Detailed Technical Specifications

Key Features

• Eight fully differential analog channels with integrated LNA, VGA, AAF, and ADC
• Low noise: 0.85 nV/√Hz input-referred noise
• Programmable gain and filter bandwidth
• Digital I/Q demodulation support
• Serial LVDS interface for data output
• On-chip voltage reference and PLL
• Small footprint: 135-ball NFBGA (15x9 mm)

Target Applications

• Medical ultrasound imaging systems (e.g., GE Voluson, Philips EPIQ)
• Portable ultrasound devices (e.g., Butterfly iQ, Clarius)
• Sonar and underwater acoustic imaging
• Non-destructive testing (NDT) equipment
• Radar and communication receivers
