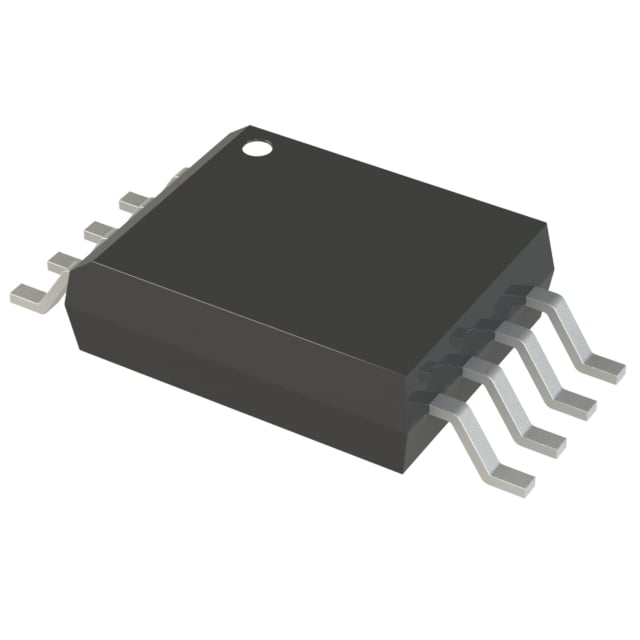

AMC0306M05DWVR TI Isolated Amplifier | 8-SOIC | 3.0V-5.5V, 100kHz

Product Overview

The AMC0306M05DWVR is a precision isolated amplifier from Texas Instruments, designed for accurate current sensing and voltage measurement in high-voltage applications. It features a reinforced isolation barrier that provides galvanic isolation up to 5 kVRMS, making it suitable for industrial and automotive systems requiring safety and reliability. The device operates from a single 3.0V to 5.5V supply on the high-side and low-side, and offers a fixed gain of 8.2 V/V. With a bandwidth of 100 kHz, it enables precise monitoring of fast-changing signals. The 8-SOIC package ensures compact design and ease of integration.

Detailed Technical Specifications

Key Features

• Reinforced galvanic isolation up to 5 kVRMS
• Wide supply voltage range: 3.0V to 5.5V
• Fixed gain of 8.2 V/V for simplified design
• High bandwidth of 100 kHz for fast signal tracking
• Low offset voltage and nonlinearity for accurate measurements
• High common-mode transient immunity for robust operation in noisy environments
• Extended temperature range: -40°C to +125°C
• Compact 8-SOIC package for space-constrained designs

Target Applications

• Motor drive current sensing in industrial automation (e.g., Siemens SINAMICS drives)
• Solar inverter current monitoring (e.g., Huawei SUN2000 inverters)
• Battery management systems for electric vehicles (e.g., Tesla Model 3 BMS)
• 5G base station power supply monitoring (e.g., Nokia AirScale base stations)
• Automotive on-board charger isolation (e.g., BYD e6 OBC)
• Industrial power supply feedback control (e.g., Mean Well RSP series)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for AMC0306M05DWVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
