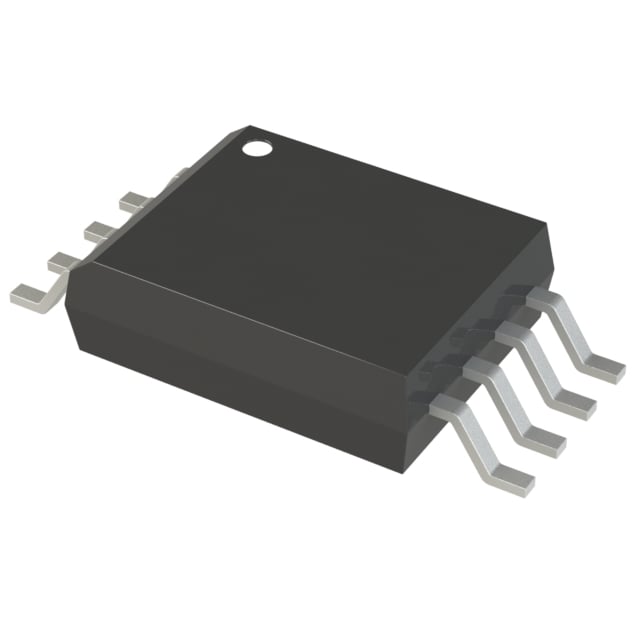

AMC1211AQDWVQ1 TI Isolated Amplifier | 8-SOIC | 1-Ch, ±250mV Input, 3.3V/5V

Product Overview

The AMC1211AQDWVQ1 is a precision, isolated amplifier from Texas Instruments, designed for automotive and industrial applications. It features a differential input voltage range of ±250 mV and provides galvanic isolation up to 3 kVrms. The device operates from a single 3.3 V or 5 V supply on the high-side and low-side, making it suitable for shunt resistor-based current sensing in motor drives, inverters, and battery management systems. The AMC1211AQDWVQ1 is qualified to AEC-Q100 for automotive applications and is offered in an 8-pin SOIC package.

Detailed Technical Specifications

Key Features

• Reinforced galvanic isolation up to 3 kVrms
• ±250 mV differential input optimized for shunt resistors
• Low offset and gain drift over temperature
• Single 3.3 V or 5 V supply on both sides
• High common-mode transient immunity (>15 kV/µs)
• Small 8-SOIC package for space-constrained designs
• AEC-Q100 qualified for automotive reliability

Target Applications

• Automotive traction inverters (e.g., in electric vehicles like Tesla Model 3)
• On-board charger (OBC) and DC/DC converters (e.g., in BYD Han EV)
• Battery management systems (BMS) for Li-ion battery packs (e.g., in Nissan Leaf)
• Industrial motor drives (e.g., Siemens SINAMICS V20)
• Solar inverters (e.g., Huawei SUN2000 series)
• 5G base station power supplies (e.g., Nokia AirScale)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for AMC1211AQDWVQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
