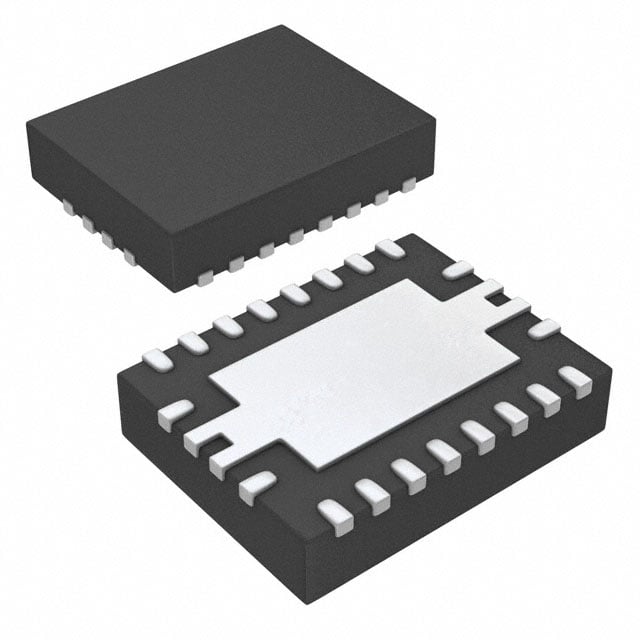

BQ25012RHLR TI Battery Charger IC | 20-VQFN (3.5x4.5) | 4.5V-10V Input, 1A Charge

Product Overview

The BQ25012RHLR is a highly integrated Li-Ion linear charger and dual synchronous step-down converter from Texas Instruments. Designed for space-constrained portable applications, it combines a 1A linear charger with two highly efficient step-down converters in a compact 20-pin VQFN package (3.5mm x 4.5mm). The device operates from an input voltage range of 4.5V to 10V, making it suitable for USB and adapter charging. The charger features thermal regulation, preconditioning, and termination, while the converters provide adjustable output voltages down to 0.9V with up to 95% efficiency.

Detailed Technical Specifications

Key Features

• Integrated 1A linear charger with thermal regulation
• Dual 2.25 MHz synchronous step-down converters
• High efficiency up to 95%
• Programmable charge current and converter output voltages
• Preconditioning and termination for Li-Ion batteries
• Power save mode for light load efficiency
• Overcurrent and overtemperature protection
• Small 20-pin VQFN package (3.5mm x 4.5mm)

Target Applications

• Portable medical devices (e.g., glucose meters, pulse oximeters)
• Wireless headsets and earbuds
• Smart wearables (e.g., smartwatches, fitness trackers)
• Industrial handheld terminals
• IoT sensors and modules
• 5G small cell base stations (for backup battery charging)
• Automotive dashboard cameras

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BQ25012RHLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BQ25012RHLR 是德州儀器推出的一款高度集成的鋰離子線性充電器和雙同步降壓轉換器。專為空間受限的便攜式應用設計，它將 1A 線性充電器與兩個高效降壓轉換器集成在緊湊的 20 引腳 VQFN 封裝（3.5mm x 4.5mm）中。該器件的工作輸入電壓範圍為 4.5V 至 10V，適用於 USB 和適配器充電。充電器具有熱調節、預處理和終止功能，而轉換器提供可調輸出電壓（低至 0.9V），效率高達 95%。

詳細技術參數

核心特性

• 集成 1A 線性充電器，帶熱調節
• 雙 2.25 MHz 同步降壓轉換器
• 高效率，高達 95%
• 可編程充電電流和轉換器輸出電壓
• 鋰離子電池預處理和終止
• 輕載高效能的省電模式
• 過流和過溫保護
• 小型 20 引腳 VQFN 封裝（3.5mm x 4.5mm）

典型應用場景

• 便攜式醫療設備（如血糖儀、脈搏血氧儀）
• 無線耳機和耳塞
• 智能可穿戴設備（如智能手錶、健身追蹤器）
• 工業手持終端
• 物聯網傳感器和模塊
• 5G 小型蜂窩基站（用於備用電池充電）
• 汽車行車記錄儀

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BQ25012RHLR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
