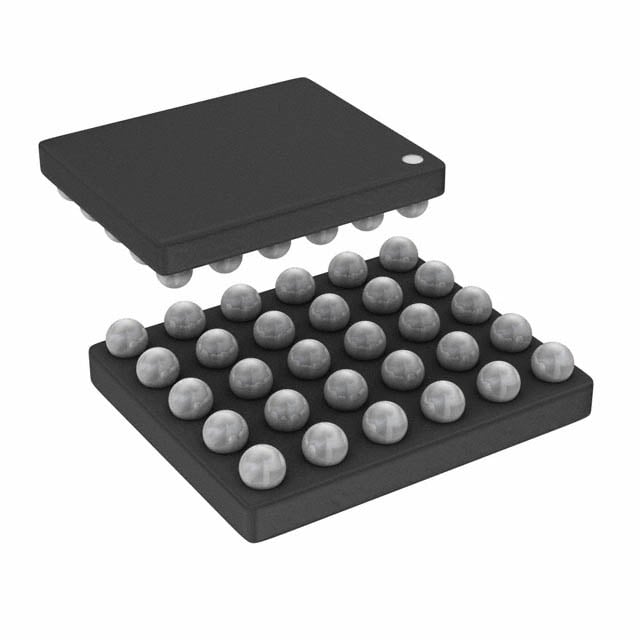

BQ25600YFFT TI Battery Charger IC | 30-DSBGA | I2C, 3A Charge

Product Overview

The BQ25600YFFT is a highly integrated 3A switch-mode battery charge management IC from Texas Instruments, designed for single-cell Li-Ion and Li-Polymer batteries. It features a low-impedance power path that optimizes charging efficiency and reduces battery discharge in sleep mode. The device supports I2C programmable parameters, including charge current, voltage, and input current limit, making it ideal for space-constrained applications. Packaged in a compact 30-ball DSBGA (2.4mm x 2.8mm), it offers a complete charging solution with integrated FETs and current sensing.

Detailed Technical Specifications

Key Features

• High efficiency 3A charge with 20mΩ battery FET and 20mΩ system FET
• I2C programmable charge current, voltage, and input current limit
• Low quiescent current: 5µA in battery-only mode
• Integrated ADC for voltage, current, and temperature monitoring
• Thermal regulation and protection (JEITA compliant)
• USB On-The-Go (OTG) support up to 1.2A at 5V
• Ship mode for ultra-low battery discharge

Target Applications

• Smartphones and tablets (e.g., Samsung Galaxy S series, Apple iPhone)
• Portable medical devices (e.g., glucose meters, insulin pumps)
• Industrial handheld terminals (e.g., Zebra TC series)
• 5G base station monitoring modules
• Smart home devices (e.g., Amazon Echo, Google Nest)
• Wearable electronics (e.g., smartwatches, fitness trackers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BQ25600YFFT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BQ25600YFFT 是德州儀器推出的一款高度集成的 3A 開關模式電池充電管理 IC，專為單節鋰離子/鋰聚合物電池設計。其低阻抗電源路徑優化充電效率，並在休眠模式下減少電池放電。該器件支持 I2C 可編程參數，包括充電電流、電壓和輸入電流限制，非常適合空間受限的應用。採用緊湊的 30 球 DSBGA（2.4mm x 2.8mm）封裝，集成 FET 和電流檢測，提供完整的充電解決方案。

詳細技術參數

核心特性

• 高效 3A 充電，20mΩ 電池 FET 和 20mΩ 系統 FET
• I2C 可編程充電電流、電壓和輸入電流限制
• 低靜態電流：電池模式下 5µA
• 集成 ADC 用於電壓、電流和溫度監控
• 熱調節和保護（符合 JEITA 標準）
• USB On-The-Go (OTG) 支持，最高 1.2A 5V 輸出
• 運輸模式實現超低電池放電

典型應用場景

• 智能手機和平板電腦（例如三星 Galaxy S 系列、蘋果 iPhone）
• 便攜式醫療設備（例如血糖儀、胰島素泵）
• 工業手持終端（例如 Zebra TC 系列）
• 5G 基站監控模塊
• 智能家居設備（例如 Amazon Echo、Google Nest）
• 可穿戴電子產品（例如智能手錶、健身追蹤器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BQ25600YFFT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
