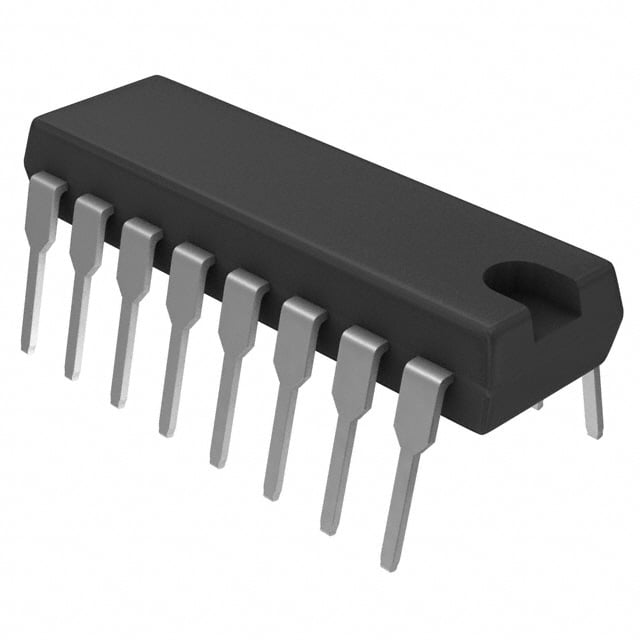

CD4050BE TI Non-Inverting Buffer/Converter | 16-PDIP | 3V-15V, 6-Channel

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The CD4050BE from Texas Instruments is a high-voltage silicon-gate CMOS hex non-inverting buffer and logic-level converter. It features six independent buffers capable of converting logic levels from up to 15V down to TTL/CMOS levels. The device operates over a wide supply voltage range of 3V to 15V, making it suitable for interfacing between different logic families. Housed in a 16-pin PDIP package, the CD4050BE offers high noise immunity and low power consumption, typical of CMOS technology.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VDD) 3V to 15V
Input Voltage Range 0V to VDD
Output Voltage Range 0V to VDD
High-Level Output Current (IOH) -1.6 mA (min) at VDD=5V
Low-Level Output Current (IOL) 6.4 mA (min) at VDD=5V
Propagation Delay Time (tPLH/tPHL) 60 ns (typ) at VDD=5V, CL=50pF
Input Capacitance 5 pF (typ)
Operating Temperature Range -55°C to +125°C
Package 16-PDIP

Key Features

  • Wide supply voltage range: 3V to 15V
  • Logic-level conversion capability (e.g., 15V to 5V)
  • High noise immunity: 0.45 VDD (typ)
  • Low power consumption: 10 nW (typ) at VDD=5V
  • Standardized symmetrical output characteristics
  • 100% tested for quiescent current at 20V
  • Meets all requirements of JEDEC Tentative Standard No. 13B, Standard Specifications for Description of 'B' Series CMOS Devices

Target Applications

  • Logic-level conversion in 5G base station control boards
  • Interface between high-voltage sensors and low-voltage microcontrollers in automotive dashboards
  • Buffer for driving LEDs or relays in industrial automation
  • Signal conditioning in medical devices (e.g., patient monitoring systems)
  • Level shifting in consumer electronics like smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CD4050BE. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CD4050BE 是德州儀器 (TI) 生產的高壓硅柵 CMOS 六路同相緩衝器和邏輯電平轉換器。它包含六個獨立的緩衝器,能夠將高達 15V 的邏輯電平轉換為 TTL/CMOS 電平。該器件在 3V 至 15V 的寬電源電壓範圍內工作,適用於不同邏輯系列之間的接口。採用 16 引腳 PDIP 封裝,具有 CMOS 技術典型的高抗噪聲和低功耗特性。

詳細技術參數

參數 數值
電源電壓 (VDD) 3V 至 15V
輸入電壓範圍 0V 至 VDD
輸出電壓範圍 0V 至 VDD
高電平輸出電流 (IOH) -1.6 mA (最小值) 在 VDD=5V 時
低電平輸出電流 (IOL) 6.4 mA (最小值) 在 VDD=5V 時
傳播延遲時間 (tPLH/tPHL) 60 ns (典型值) 在 VDD=5V, CL=50pF 時
輸入電容 5 pF (典型值)
工作溫度範圍 -55°C 至 +125°C
封裝 16-PDIP

核心特性

  • 寬電源電壓範圍:3V 至 15V
  • 邏輯電平轉換能力(例如 15V 轉 5V)
  • 高抗噪聲:0.45 VDD(典型值)
  • 低功耗:10 nW(典型值)在 VDD=5V 時
  • 標準化對稱輸出特性
  • 在 20V 下 100% 測試靜態電流
  • 符合 JEDEC 暫行標準第 13B 號 'B' 系列 CMOS 器件描述標準規範的所有要求

典型應用場景

  • 5G 基站控制板中的邏輯電平轉換
  • 汽車儀表盤中高壓傳感器與低壓微控制器之間的接口
  • 工業自動化中驅動 LED 或繼電器的緩衝器
  • 醫療設備(如病人監護系統)中的信號調理
  • 智能家居中樞等消費電子產品中的電平轉換

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 CD4050BE 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
