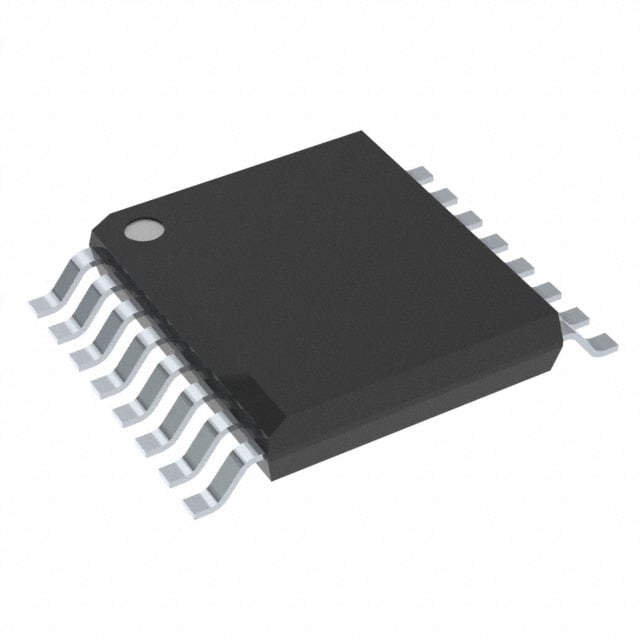

CD74HC595SM96 TI Shift Register | 16-SSOP | 8-bit, Serial-In Parallel-Out
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The CD74HC595SM96 is a high-speed CMOS 8-bit serial-in, parallel-out shift register from Texas Instruments. It features a storage register and tri-state outputs, making it ideal for expanding digital outputs in microcontroller-based systems. The device operates over a wide voltage range of 2V to 6V and is offered in a compact 16-SSOP package.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (VCC) | 2V to 6V |
| Input Voltage (VI) | 0V to VCC |
| Output Voltage (VO) | 0V to VCC |
| High-Level Input Voltage (VIH) | 3.15V min at VCC=4.5V |
| Low-Level Input Voltage (VIL) | 1.35V max at VCC=4.5V |
| High-Level Output Current (IOH) | -4 mA at VCC=4.5V |
| Low-Level Output Current (IOL) | 4 mA at VCC=4.5V |
| Propagation Delay (tpd) | 13 ns typ at VCC=4.5V, CL=50pF |
| Maximum Clock Frequency | 50 MHz typ at VCC=4.5V |
| Operating Temperature | -55°C to +125°C |
| Package | 16-SSOP |
Key Features
- 8-bit serial-in, parallel-out shift register with storage register
- Tri-state output buffers for bus-oriented applications
- Wide operating voltage range: 2V to 6V
- High noise immunity: typical VNIH = VNIL = 28% of VCC
- Low power consumption: 80 µA max ICC
- Direct interface with CMOS and TTL logic levels
- Shift register has direct clear input
- Outputs can drive up to 10 LSTTL loads
Target Applications
- 5G base station control logic for antenna array switching
- Automotive dashboard display segment drivers
- Industrial PLC output expansion modules
- LED matrix displays in digital signage
- Microcontroller I/O expansion for IoT devices
- Data acquisition systems for parallel data capture
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for CD74HC595SM96. Our core advantages include:
- 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
- In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
- HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
- Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
- BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.
- 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
- RoHS Compliant: All electronic components comply with international environmental and safety standards.
- Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
產品概述
CD74HC595SM96 是德州儀器生產的高速 CMOS 8 位串行輸入、並行輸出移位寄存器。它包含存儲寄存器和三態輸出，非常適合在微控制器系統中擴展數字輸出。該器件可在 2V 至 6V 的寬電壓範圍內工作，採用緊湊的 16-SSOP 封裝。
詳細技術參數
| 參數 | 數值 |
|---|---|
| 電源電壓 (VCC) | 2V 至 6V |
| 輸入電壓 (VI) | 0V 至 VCC |
| 輸出電壓 (VO) | 0V 至 VCC |
| 高電平輸入電壓 (VIH) | VCC=4.5V 時最小值 3.15V |
| 低電平輸入電壓 (VIL) | VCC=4.5V 時最大值 1.35V |
| 高電平輸出電流 (IOH) | VCC=4.5V 時 -4 mA |
| 低電平輸出電流 (IOL) | VCC=4.5V 時 4 mA |
| 傳播延遲 (tpd) | VCC=4.5V, CL=50pF 時典型值 13 ns |
| 最大時鐘頻率 | VCC=4.5V 時典型值 50 MHz |
| 工作溫度 | -55°C 至 +125°C |
| 封裝 | 16-SSOP |
核心特性
- 8 位串行輸入、並行輸出移位寄存器，帶存儲寄存器
- 三態輸出緩衝器，適用於總線應用
- 寬工作電壓範圍：2V 至 6V
- 高抗噪能力：典型 VNIH = VNIL = 28% VCC
- 低功耗：最大 ICC 80 µA
- 直接兼容 CMOS 和 TTL 邏輯電平
- 移位寄存器具有直接清零輸入
- 輸出可驅動多達 10 個 LSTTL 負載
典型應用場景
- 5G 基站天線陣列切換的控制邏輯
- 汽車儀表盤顯示段驅動器
- 工業 PLC 輸出擴展模塊
- 數字標牌中的 LED 矩陣顯示
- 物聯網設備的微控制器 I/O 擴展
- 並行數據採集的數據採集系統
環球供應鏈與批發合作夥伴方案
在 Jasin Chip，我們為 CD74HC595SM96 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：
- 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
- 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
- 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
- Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
- BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。
品質保證與合規
Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。
- 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
- 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
- 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。
以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
