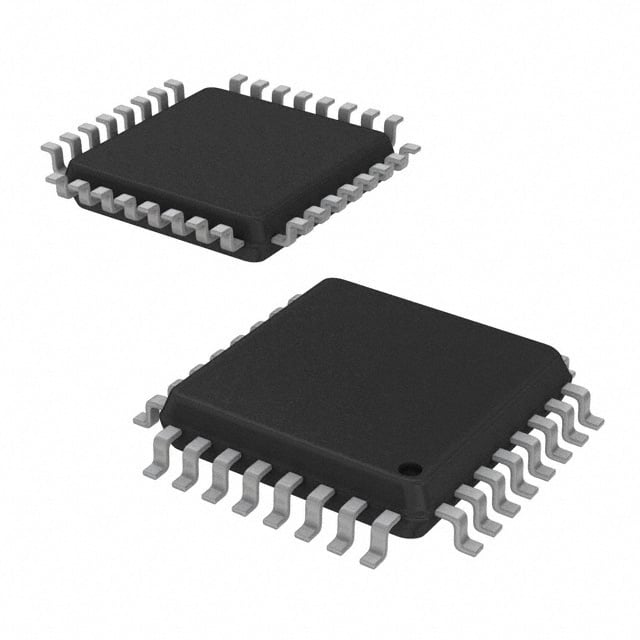

CDCLVD110VFR TI Clock Fanout Buffer | 32-LQFP (7x7) | 1.8V, 2.5V, 3.3V, 1:10 LVDS

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The CDCLVD110VFR is a high-performance, low-skew, 1:10 LVDS clock fanout buffer from Texas Instruments. It is designed to distribute high-speed clock signals with minimal additive jitter and skew, making it ideal for demanding timing applications. The device operates from a single 1.8V, 2.5V, or 3.3V supply and features 10 LVDS outputs with a typical output-to-output skew of 20 ps. The CDCLVD110VFR is housed in a compact 32-pin LQFP (7x7 mm) package, enabling space-efficient designs.

Detailed Technical Specifications

Parameter Value
Number of Outputs 10
Output Type LVDS
Supply Voltage 1.8V, 2.5V, 3.3V
Additive Jitter (RMS, 12 kHz–20 MHz) 0.2 ps
Output-to-Output Skew 20 ps (typical)
Input Frequency DC to 1.5 GHz
Operating Temperature -40°C to +85°C
Package 32-LQFP (7x7 mm)

Key Features

  • 1:10 LVDS fanout buffer with low additive jitter (0.2 ps RMS)
  • Ultra-low output-to-output skew (20 ps typical)
  • Wide supply voltage range: 1.8V, 2.5V, or 3.3V
  • High-speed operation up to 1.5 GHz
  • Fail-safe input with internal termination
  • Industrial temperature range: -40°C to +85°C
  • Compact 32-pin LQFP package (7x7 mm)

Target Applications

  • 5G base stations (e.g., clock distribution for RF transceivers)
  • Data center switches and routers (e.g., distributing reference clocks to FPGAs and ASICs)
  • Automotive infotainment and dashboard systems (e.g., clock distribution for display controllers)
  • Test and measurement equipment (e.g., low-jitter clock distribution for ADC/DAC)
  • High-speed ADC/DAC clocking (e.g., distributing sampling clocks)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CDCLVD110VFR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CDCLVD110VFR 是德州儀器(TI)推出的一款高性能、低偏斜的 1:10 LVDS 時鐘扇出緩衝器。它能夠以極低的附加抖動和偏斜分配高速時鐘信號,非常適合要求嚴格的時序應用。該器件可在 1.8V、2.5V 或 3.3V 單電源下工作,具有 10 個 LVDS 輸出,典型輸出間偏斜為 20 ps。CDCLVD110VFR 採用緊湊的 32 引腳 LQFP(7x7 mm)封裝,有助於節省空間的設計。

詳細技術參數

參數 數值
輸出數量 10
輸出類型 LVDS
電源電壓 1.8V, 2.5V, 3.3V
附加抖動(RMS,12 kHz–20 MHz) 0.2 ps
輸出間偏斜 20 ps(典型值)
輸入頻率 DC 至 1.5 GHz
工作溫度 -40°C 至 +85°C
封裝 32-LQFP(7x7 mm)

核心特性

  • 1:10 LVDS 扇出緩衝器,附加抖動低至 0.2 ps RMS
  • 超低輸出間偏斜(典型值 20 ps)
  • 寬電源電壓範圍:1.8V、2.5V 或 3.3V
  • 高速工作,最高可達 1.5 GHz
  • 故障安全輸入,帶內部端接
  • 工業溫度範圍:-40°C 至 +85°C
  • 緊湊的 32 引腳 LQFP 封裝(7x7 mm)

典型應用場景

  • 5G 基站(例如,為射頻收發器分配時鐘)
  • 數據中心交換機和路由器(例如,為 FPGA 和 ASIC 分配參考時鐘)
  • 汽車信息娛樂和儀表板系統(例如,為顯示控制器分配時鐘)
  • 測試和測量設備(例如,為 ADC/DAC 分配低抖動時鐘)
  • 高速 ADC/DAC 時鐘(例如,分配採樣時鐘)

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 CDCLVD110VFR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
