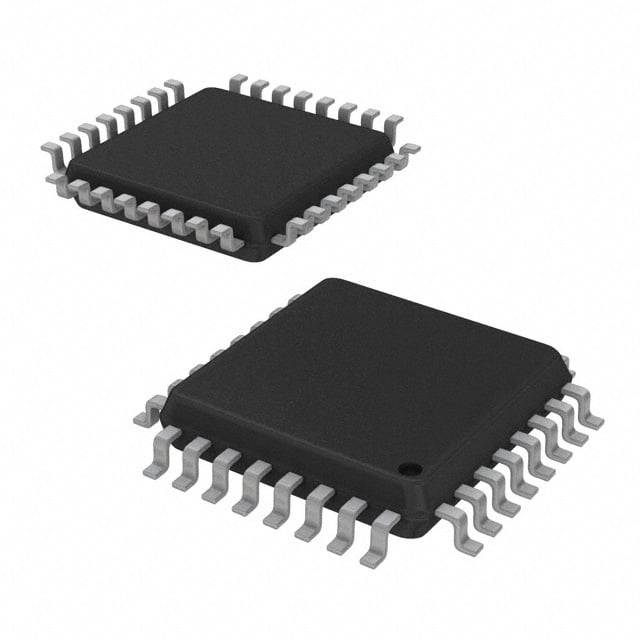

CDCLVP110VF TI Clock Buffer | 32-LQFP (7x7) | 2.5V/3.3V, 1.5GHz

Product Overview

The CDCLVP110VF is a high-performance, low-jitter clock buffer from Texas Instruments, designed to distribute reference clocks with minimal additive phase noise. It features 10 LVDS outputs with a selectable divider (÷1, ÷2, ÷4, ÷8) and operates from a single 2.5V or 3.3V supply. The device is housed in a compact 32-pin LQFP (7x7mm) package, making it ideal for space-constrained applications requiring precise clock distribution.

Detailed Technical Specifications

Key Features

• 10 LVDS outputs with programmable divider (÷1, ÷2, ÷4, ÷8)
• Ultra-low additive jitter: 0.1 ps RMS typical
• Wide operating frequency range: DC to 1.5 GHz
• Single 2.5V or 3.3V supply operation
• Output enable/disable control
• Fail-safe input support
• Industrial temperature range: -40°C to 85°C

Target Applications

• 5G base station clock distribution (e.g., for massive MIMO transceivers)
• High-speed data converters (ADC/DAC) clocking in radar systems
• Automotive advanced driver-assistance systems (ADAS) sensor fusion
• Network switches and routers (e.g., 100G Ethernet line cards)
• Test and measurement equipment (e.g., oscilloscope timebase distribution)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CDCLVP110VF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CDCLVP110VF 是德州儀器（TI）推出的一款高性能、低抖動時鐘緩衝器，專為參考時鐘分配而設計，具有極低的附加相位噪聲。它提供10路LVDS輸出，帶有可選分頻器（÷1、÷2、÷4、÷8），並支持2.5V或3.3V單電源供電。器件採用緊湊的32引腳LQFP（7x7mm）封裝，非常適合需要精確時鐘分配的空間受限應用。

詳細技術參數

核心特性

• 10路LVDS輸出，帶可編程分頻器（÷1、÷2、÷4、÷8）
• 超低附加抖動：典型值0.1 ps RMS
• 寬工作頻率範圍：DC 至 1.5 GHz
• 單電源2.5V或3.3V供電
• 輸出使能/禁用控制
• 故障安全輸入支持
• 工業溫度範圍：-40°C 至 85°C

典型應用場景

• 5G基站時鐘分配（例如用於大規模MIMO收發器）
• 雷達系統中高速數據轉換器（ADC/DAC）的時鐘
• 汽車高級駕駛輔助系統（ADAS）傳感器融合
• 網絡交換機和路由器（例如100G以太網線卡）
• 測試與測量設備（例如示波器時基分配）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CDCLVP110VF 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
