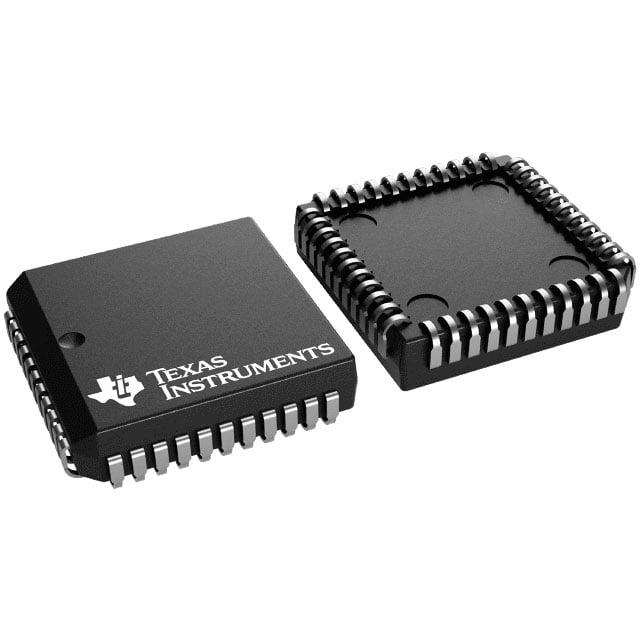

COP8CCR9HVA8/NOPB TI 8-bit MCU | 44-PLCC (16.58x16.58) | 8KB OTP, 256B RAM

Product Overview

The COP8CCR9HVA8/NOPB is a high-performance 8-bit microcontroller from Texas Instruments, part of the COP8™ family. It features an 8-bit CPU core with an 8KB OTP (One-Time Programmable) EPROM program memory and 256 bytes of RAM. The device operates at a supply voltage range of 2.7V to 5.5V and supports a clock frequency up to 10 MHz. It is housed in a 44-pin PLCC package (16.58x16.58 mm), offering a compact solution for embedded control applications. The microcontroller integrates multiple peripherals including a 16-bit timer, watchdog timer, and up to 37 I/O lines, making it suitable for a wide range of industrial and consumer applications.

Detailed Technical Specifications

Key Features

• 8-bit COP8 CPU core with optimized instruction set for control applications
• 8KB OTP EPROM for reliable program storage
• 256 bytes of on-chip RAM
• Up to 37 general-purpose I/O pins
• 16-bit timer with capture/compare and PWM capability
• Watchdog timer for system reliability
• Power-on reset (POR) and brown-out detection
• Microwire/Plus serial interface for simple communication
• Wide operating voltage range: 2.7V to 5.5V
• Low power consumption with multiple power-saving modes
• Industrial temperature range: -40°C to +85°C
• Compact 44-PLCC package (16.58x16.58 mm)

Target Applications

The COP8CCR9HVA8/NOPB is ideal for cost-sensitive embedded control applications requiring moderate processing power and peripheral integration. Specific examples include:

• Industrial control systems: Programmable logic controllers (PLCs), motor control units
• Consumer electronics: Remote controls, smart home devices, gaming peripherals
• Automotive: Dashboard controllers, climate control modules, seat adjustment systems
• Telecommunications: 5G base station monitoring and control, network switches
• Medical devices: Patient monitoring equipment, diagnostic tools
• Security systems: Access control panels, alarm systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for COP8CCR9HVA8/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

COP8CCR9HVA8/NOPB 是德州儀器（TI）推出的一款高性能8位微控制器，屬於 COP8™ 系列。它採用8位 CPU 內核，配備 8KB OTP（一次性可編程）EPROM 程序存儲器和 256 字節 RAM。該器件支持 2.7V 至 5.5V 的電源電壓範圍，最高工作頻率可達 10 MHz。它採用 44 引腳 PLCC 封裝（16.58x16.58 mm），為嵌入式控制應用提供了緊湊的解決方案。該微控制器集成了多種外設，包括 16 位定時器、看門狗定時器以及多達 37 個 I/O 引腳，適用於廣泛的工業和消費類應用。

詳細技術參數

核心特性

• 8 位 COP8 CPU 內核，針對控制應用優化的指令集
• 8KB OTP EPROM，提供可靠的程序存儲
• 256 字節片上 RAM
• 最多 37 個通用 I/O 引腳
• 16 位定時器，帶捕獲/比較和 PWM 功能
• 看門狗定時器，提高系統可靠性
• 上電復位（POR）和欠壓檢測
• Microwire/Plus 串行接口，實現簡單通信
• 寬工作電壓範圍：2.7V 至 5.5V
• 低功耗，多種省電模式
• 工業溫度範圍：-40°C 至 +85°C
• 緊湊的 44-PLCC 封裝（16.58x16.58 mm）

典型應用場景

COP8CCR9HVA8/NOPB 非常適合需要適度處理能力和外設集成的成本敏感型嵌入式控制應用。具體實例包括：

• 工業控制系統：可編程邏輯控制器（PLC）、電機控制單元
• 消費電子：遙控器、智能家居設備、遊戲外設
• 汽車電子：儀表板控制器、氣候控制模塊、座椅調節系統
• 電信：5G 基站監控與控制、網絡交換機
• 醫療設備：病人監護設備、診斷工具
• 安防系統：門禁控制面板、報警系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 COP8CCR9HVA8/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
