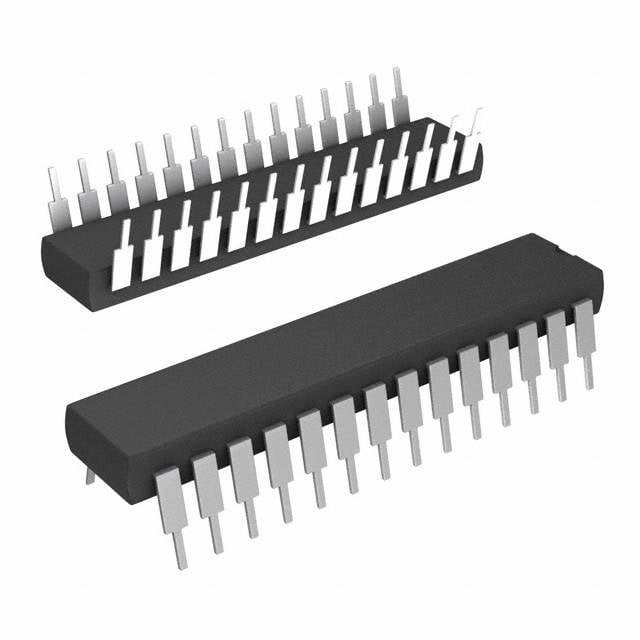

COP8SGR728N8/NOPB TI 8-bit MCU | 28-PDIP | 8KB OTP, 256B RAM

Product Overview

The COP8SGR728N8/NOPB is a high-performance 8-bit microcontroller from Texas Instruments, part of the COP8™ family. It features an 8-bit CPU core with an 8KB OTP (One-Time Programmable) EPROM program memory and 256 bytes of RAM. Housed in a 28-pin PDIP package, this MCU is designed for embedded control applications requiring low power consumption and robust operation. It operates over a wide voltage range of 2.7V to 5.5V and supports clock speeds up to 10 MHz. The device includes multiple I/O ports, timers, and an analog comparator, making it suitable for a variety of industrial and consumer applications.

Detailed Technical Specifications

Key Features

• 8-bit CPU with efficient instruction set
• 8KB OTP EPROM for program storage
• 256 bytes of on-chip RAM
• 24 bidirectional I/O lines
• Two 16-bit timers with capture/compare
• On-chip analog comparator
• Low power consumption: <5 mA at 5V, 10 MHz
• Wide operating voltage range: 2.7V to 5.5V
• Industrial temperature range: -40°C to +85°C
• 28-pin PDIP package for easy prototyping

Target Applications

The COP8SGR728N8/NOPB is ideal for cost-sensitive embedded control applications. Specific examples include:

• Industrial control systems: Programmable logic controllers (PLCs), motor control units
• Consumer electronics: Remote controls, smart home devices, gaming peripherals
• Automotive: Dashboard controllers, sensor interfaces, lighting control modules
• Telecommunications: 5G base station power management, signal conditioning units
• Medical devices: Patient monitoring systems, diagnostic equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for COP8SGR728N8/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

COP8SGR728N8/NOPB 是德州儀器 (TI) 的一款高性能 8 位微控制器，屬於 COP8™ 系列。它配備 8 位 CPU 核心、8KB OTP（一次性可編程）EPROM 程序存儲器和 256 字節 RAM。採用 28 引腳 PDIP 封裝，適用於需要低功耗和穩定運行的嵌入式控制應用。工作電壓範圍為 2.7V 至 5.5V，最高時鐘頻率可達 10 MHz。該器件包含多個 I/O 端口、定時器和模擬比較器，適用於各種工業和消費類應用。

詳細技術參數

核心特性

• 8 位 CPU，高效指令集
• 8KB OTP EPROM 程序存儲
• 256 字節片上 RAM
• 24 個雙向 I/O 線
• 兩個 16 位定時器，帶捕獲/比較功能
• 片上模擬比較器
• 低功耗：5V、10 MHz 時 <5 mA
• 寬工作電壓範圍：2.7V 至 5.5V
• 工業溫度範圍：-40°C 至 +85°C
• 28 引腳 PDIP 封裝，便於原型開發

典型應用場景

COP8SGR728N8/NOPB 適用於成本敏感的嵌入式控制應用。具體實例包括：

• 工業控制系統：可編程邏輯控制器 (PLC)、電機控制單元
• 消費電子：遙控器、智能家居設備、遊戲外設
• 汽車電子：儀表板控制器、傳感器接口、照明控制模塊
• 電信：5G 基站電源管理、信號調理單元
• 醫療設備：病人監護系統、診斷設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 COP8SGR728N8/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
