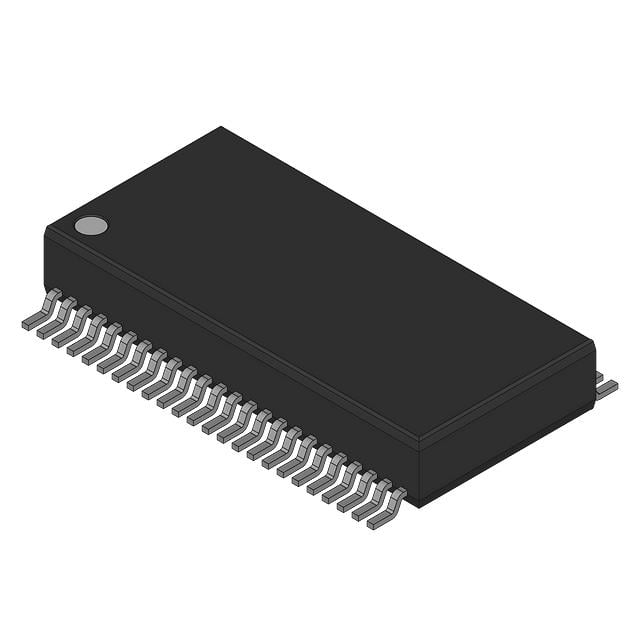

CY74FCT16373ETPVCT TI 16-bit Transparent Latch | 3-State, 5V Tolerant

Product Overview

The CY74FCT16373ETPVCT is a 16-bit transparent D-type latch with 3-state outputs from Texas Instruments, designed for high-performance memory and bus-oriented applications. It operates with a 5V supply and features 5V tolerant inputs, making it suitable for mixed-voltage systems. The device is organized as two independent 8-bit latches with separate latch-enable (LE) and output-enable (OE) controls. It is available in a TSSOP package (48-pin) and is characterized for operation from -40°C to +85°C.

Detailed Technical Specifications

Key Features

• 16-bit transparent latch with 3-state outputs
• 5V tolerant inputs for mixed-voltage compatibility
• High drive capability: -32 mA / 64 mA
• Fast propagation delay: 6.5 ns max
• Low power consumption: ICC = 10 μA (max)
• Edge-triggered latch enable with flow-through architecture
• ESD protection exceeds 2000V (HBM)
• Available in TSSOP-48 package

Target Applications

• 5G base station control logic and data buffering
• Automotive dashboard display interface
• Industrial PLC I/O modules
• Memory address latching in server motherboards
• Telecommunications switching equipment
• FPGA configuration and data bus expansion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY74FCT16373ETPVCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY74FCT16373ETPVCT 是德州儀器（TI）推出的16位透明D型鎖存器，帶三態輸出，專為高性能存儲器和總線應用設計。它工作在5V電源下，輸入可承受5V電壓，適用於混合電壓系統。器件由兩個獨立的8位鎖存器組成，具有獨立的鎖存使能（LE）和輸出使能（OE）控制。採用TSSOP-48封裝，工作溫度範圍為-40°C至+85°C。

詳細技術參數

核心特性

• 16位透明鎖存器，帶三態輸出
• 5V 耐受輸入，兼容混合電壓
• 高驅動能力：-32 mA / 64 mA
• 快速傳播延遲：最大 6.5 ns
• 低功耗：ICC 最大 10 μA
• 邊沿觸發鎖存使能，流暢架構
• ESD 保護超過 2000V (HBM)
• 採用 TSSOP-48 封裝

典型應用場景

• 5G 基站控制邏輯與數據緩衝
• 汽車儀表盤顯示接口
• 工業 PLC I/O 模塊
• 服務器主板中的存儲器地址鎖存
• 電信交換設備
• FPGA 配置與數據總線擴展

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY74FCT16373ETPVCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
